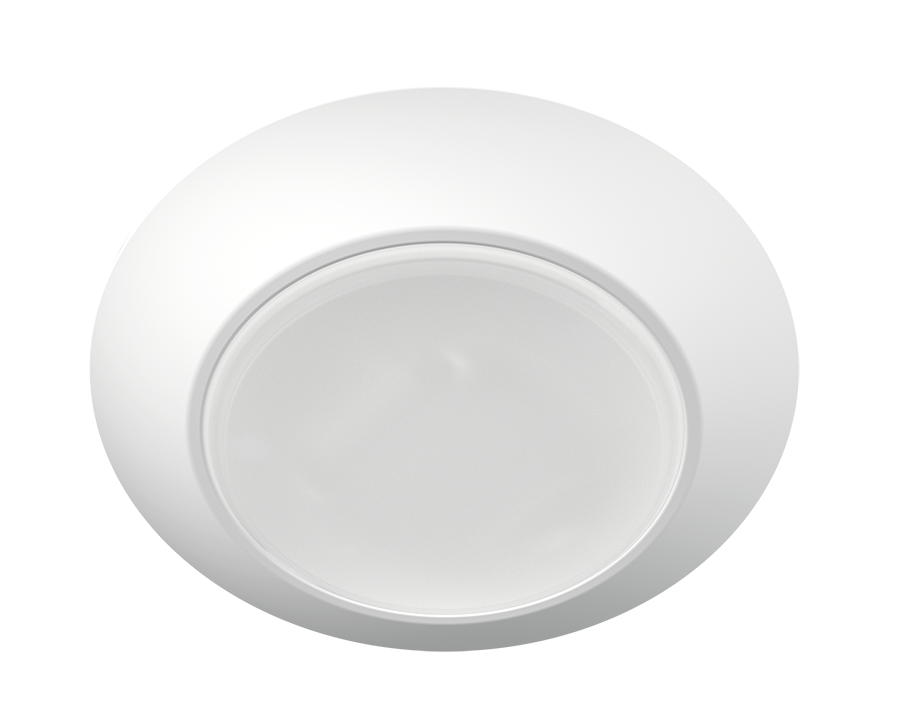

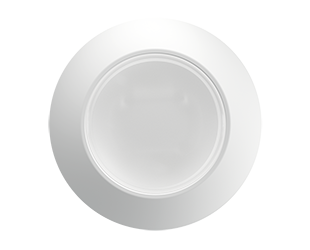

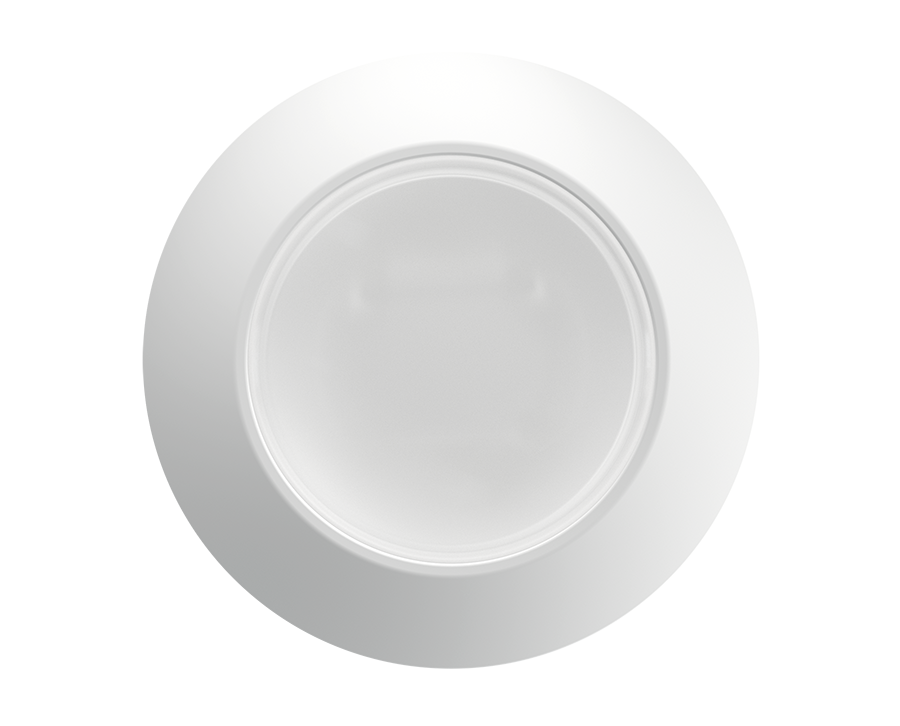

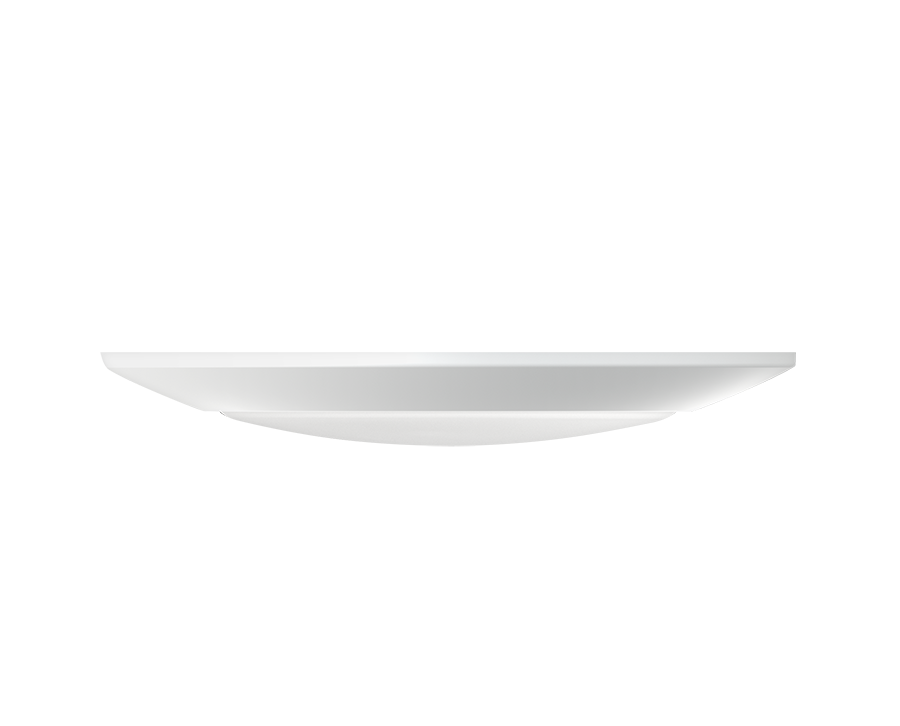

DSK34-6R16940120WS
DSK34-6R16940120WS
- Super low profile backlit LED with driverless design
- Stamped aluminum housing
- New construction or retrofit applications
- Simple and quick installation from below the ceiling
- Installs on standard 4" and 6" junction boxes
- Can be retrofitted to existing downlight housings with option accessory
- Suitable for Damp locations
- Dimmable down to 5% on compatible dimmers
- 5-Year, limited warranty
Performance
| Watts | 16W |
| Color Temp | |
| Lumens | 1,140 lm |
| Efficacy | |
| Color Accuracy | 4000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 166mA |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 16W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
Disk Surface Mount / Retrofit
Input Wattage
16W
Lumens
1,000lm
Efficacy
62.5lm/W
LEDs
Backlit LED Technology
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
75W
LED Characteristics
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Temperature
4000K
Beam Angle
110°
Electrical
THD
55%
Power Factor
≥0.9
Dimmable
TRIAC and ELV dimming compatibility
Input Voltage
120V
Operating Frequency
60Hz
Operating Temperature
-30°C - 40°C
Construction
Size
6"
Shape
Round
Housing Material
Stamped aluminum construction
Finish
White
Trim Style
Smooth
Lens
Toolless, twist-and-lock frosted polycarbonate diffusion lens
Installation
Mounting
Install from below design.
Suitable for installation in many.
3-1/2" and 4" octagon and roundelectrical junction boxes.
Compatible with compact/pancake junction boxes.
Bracket Adapter, Screws, and wire nuts included.
Suitable for installation in many.
3-1/2" and 4" octagon and roundelectrical junction boxes.
Compatible with compact/pancake junction boxes.
Bracket Adapter, Screws, and wire nuts included.
Base Type
E26 socket availabe as separate retrofit accessory
Other
Technology EQ
Incandescent
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed, UL Classified
Environment
Damp
Fixture Rating
Open
IC Rated
Suitable for direct contact with insulation
T24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
DLS0057(DSK34-6R16940120WS)
