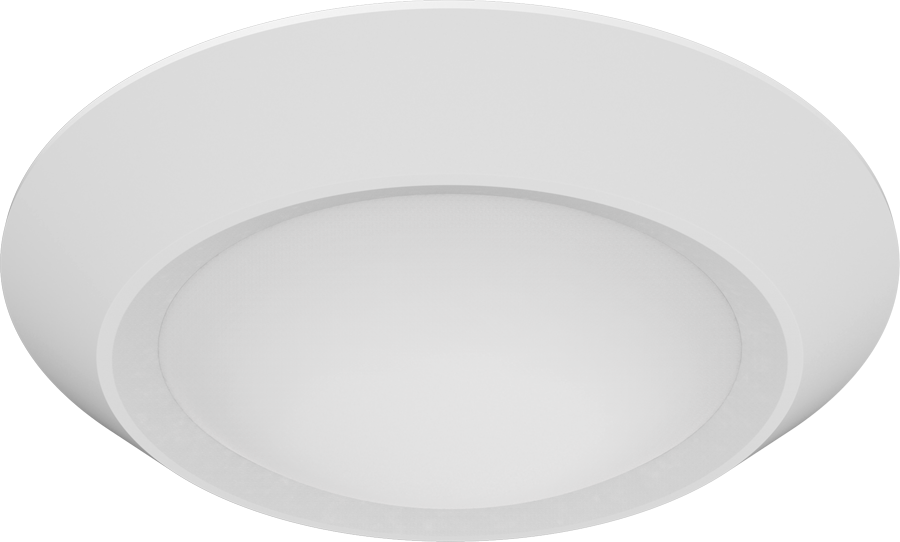

DSK6R15930120W
DSK6R15930120W
- Low profile driverless design sits just 1" below ceiling
- Robust aluminum housing has high quality weight and feel
- New construction or retrofit applications
- Simple and quick installation with snap in mounting bracket
- Suitable for wet locations
- Dimmable down to 5% on compatible dimmers
- Suitable for use in closets
- 5-Year, No-Compromise Warranty
Performance
| Watts | 15W |
| Color Temp | 3000K (Warm) |
| Lumens | 1,072 lm |
| Efficacy | 63.33333333 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.133A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 14.9W |

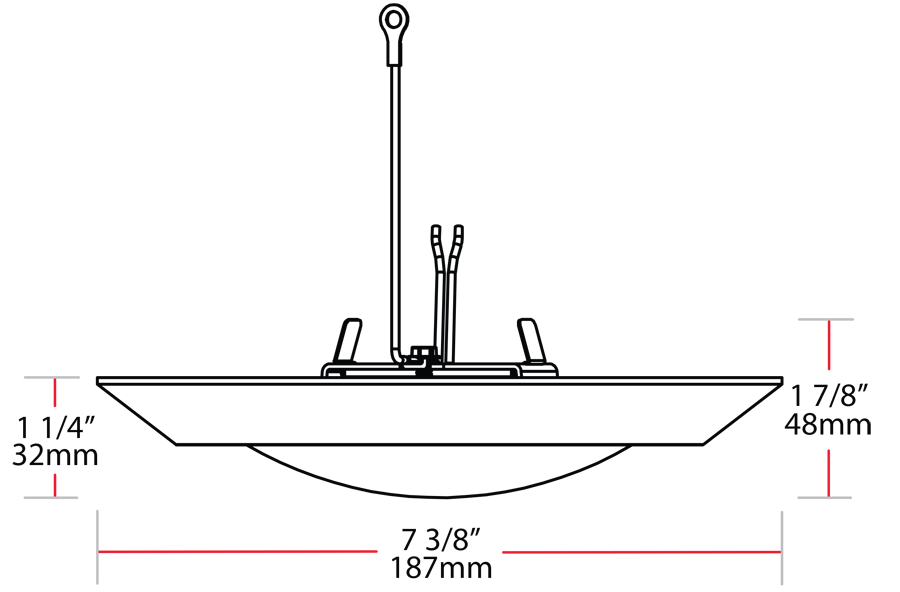

Dimensions
Weight: 0.6 lbs
Technical Specifications
Compliance
UL Listed & UL Classified
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLD0010
Energy Star ID
2351220
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
IC Rated
Suitable for direct contact with insulation
California Title 24
Can be used to conform with the requirements of California Title 24 Part 6.
Electrical
Dimming Driver
TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.
Power Factor
≥0.9
PF
≥0.9
Input Voltage
120V
Flicker
Silent and flicker free operations of less than 30%
Operating Frequency (Hz)
60Hz
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
75W Incandescent
LED Characteristics
Beam Angle
120°
LEDs
Long-life, high-efficacy, surface-mount LEDs
R9 Value
High color performance with R9 greater than or equal to 50
Construction
Housing
Constructed from durable aluminum that also dissipates heat away from on board high efficacy driver
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Frosted polycarbonate diffusion lens
Green Technology
Mercury and UV free. RoHS-compliant components.
Socket Adapter
Accessory with E26 base available
Finish
Matte White
Other
Compatibility
Compatible with most 5" and 6" recessed housings
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
