ECLPS6

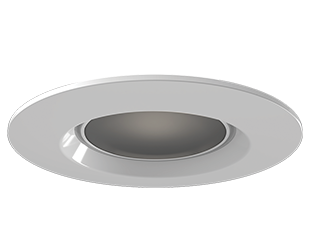

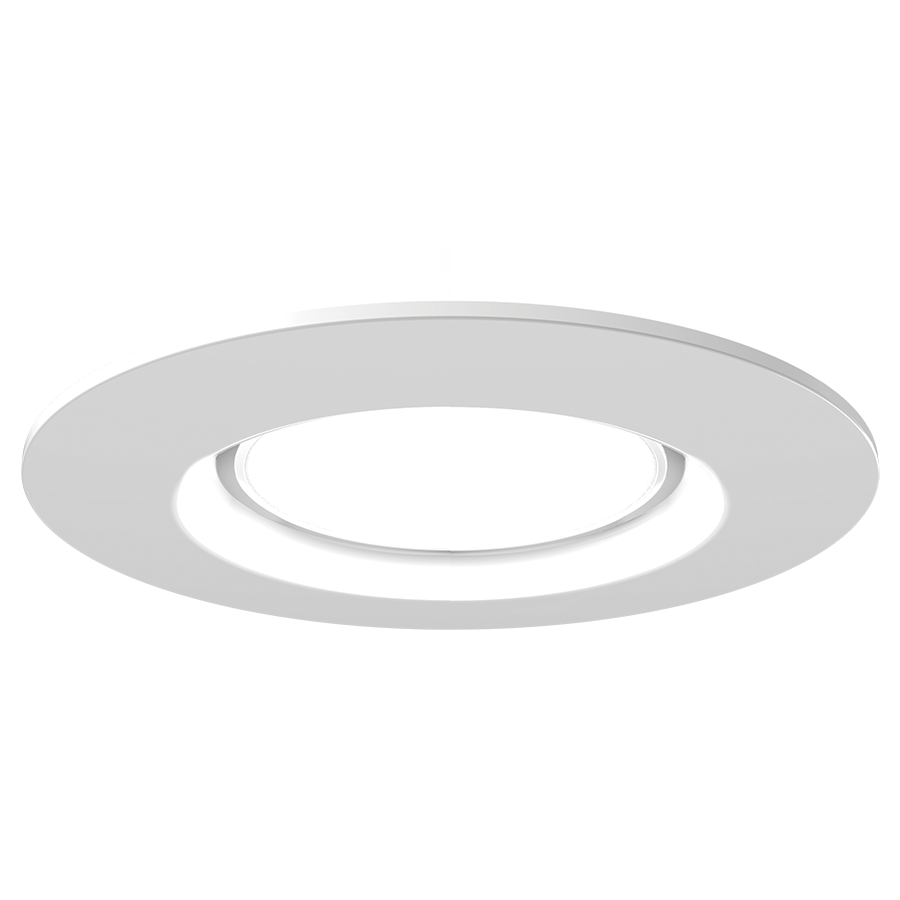

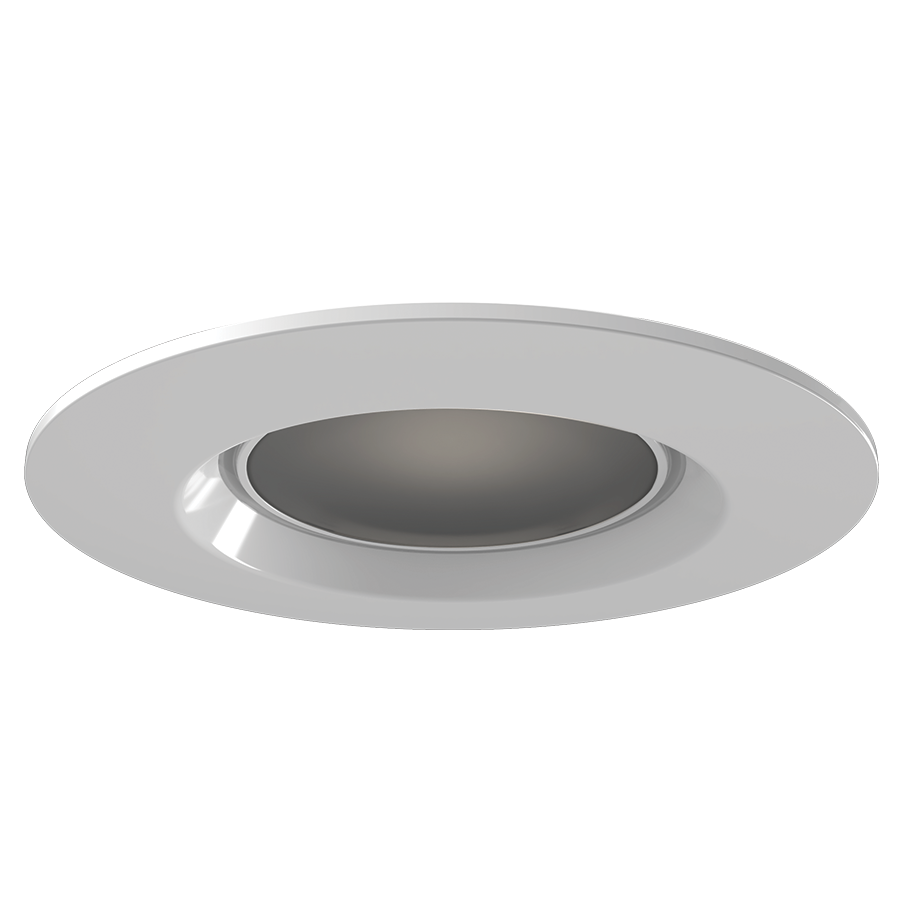

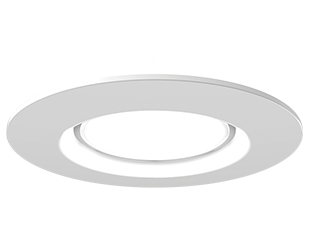

Smooth and baffle trim cones available in a white finish

5CCT field adjustable (2700/3000/3500/4000/5000K)

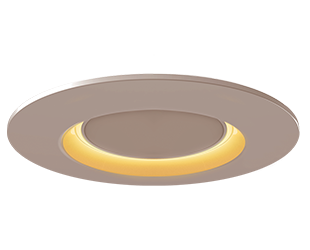

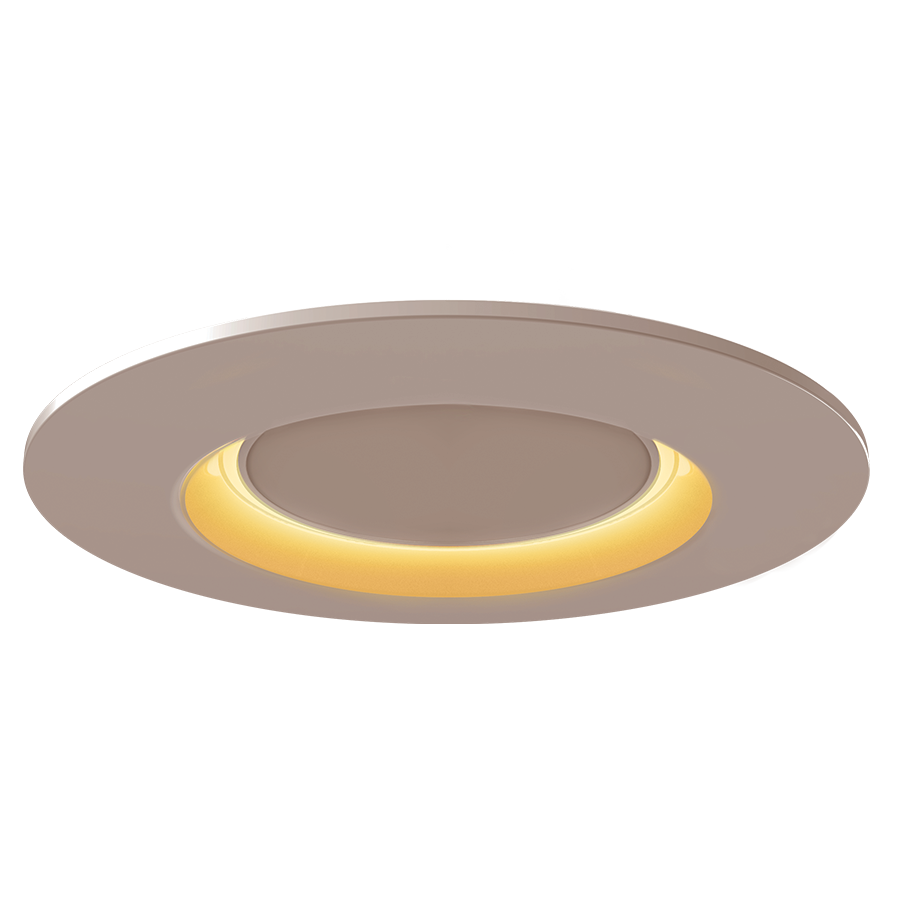

2000K amber white nightlight ring located on the inside of the trim cone

Dimmable on TRIAC/ELV @ 120V

50,000 hrs, 5-year no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp
Lumens	900 lm
Efficacy	94
Color Accuracy	2700/3000/3500/4000/5000K CRI
L70 Lifespan

Type	Constant Current, Class 2
120V	91A
208V
240V
277V
Input Watts	9.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

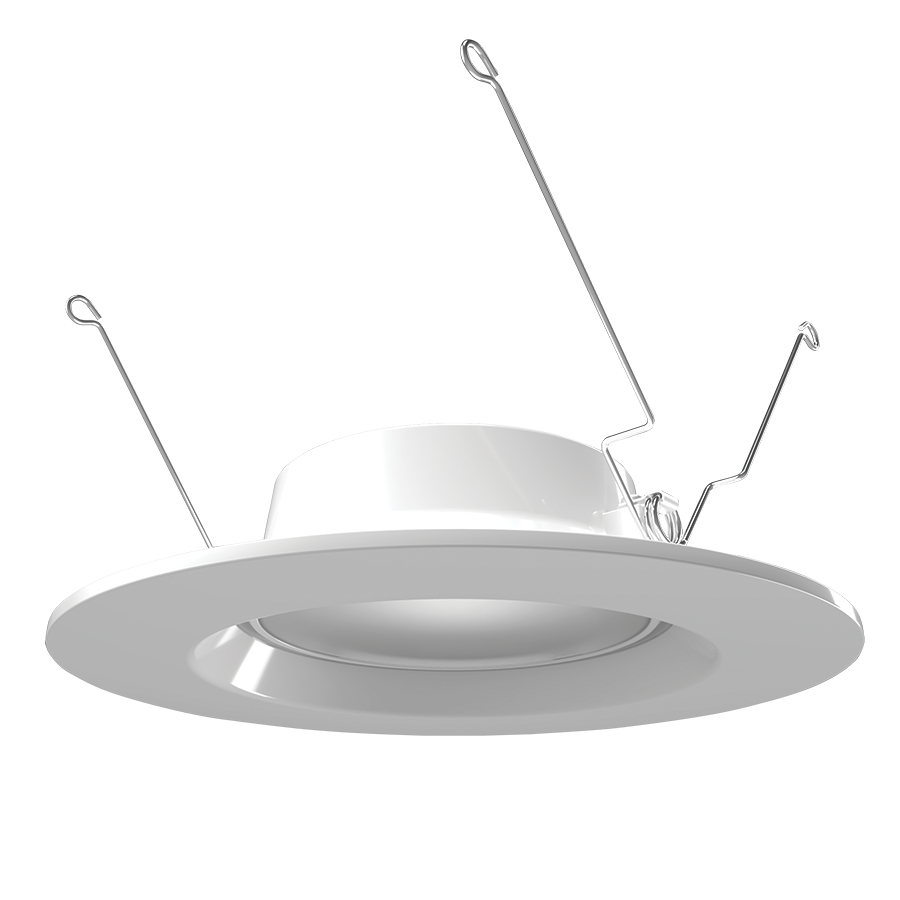

Retrofit Downlight w/Nightlight

Description

Recessed lighting retrofits with a nightlight mode to provide 2000K amber color temperature alone. Creates comfort, warmth, so ft lighting and extra ambiance to help you fall asleep at night.

Wattage Equivalency

60W Incandescent

Input Wattage

9.5W

Lumens (Nominal)

900lm (mainlight)
20lm (nightlight)

Actual Lumens

Mainlight:
907lm @ 2700K;
915lm @ 3000K;
932lm @ 3500K;
938lm @ 4000K;
960lm @ 5000K

Nightlight:
20lm @ 2000K

Efficacy

Mainlight:
97lm/W @ 2700K;
97lm/W @ 3000K;
98lm/W @ 3500K;
99lm/W @ 4000K;
102lm/W @ 5000K

Nightlight:
6lm/W @ 2000K

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

20%

Power Factor

>0.7

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

0.09mA

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

30%

LED Characteristics

Beam Angle

90°

Color Temperature

Mainlight:
Field adjustable via dip switch 2700/3000/3500/4000/5000

Nightlight:
2000

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step (2700K & 5000K); <7-step (3000K/3500K/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Base Type

E26 socket adapter Included

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Plastic

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Listings

UL Classified, UL Recognized

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Air Tight

Energy Star Approved

This product is ENERGY STAR® Version 2.2 Certified.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Certification Model Number

DLR0155(ECLPS6)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

NDCANIC6R
6" New construction recessed housing IC rated
RDCANIC6R
6" Remodeler recessed housing IC rated
RFLED-RETROBAND
Retrofit band with friction clips for 5"/6" downlight

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
