Dimensions
Technical Specifications
Performance
Description

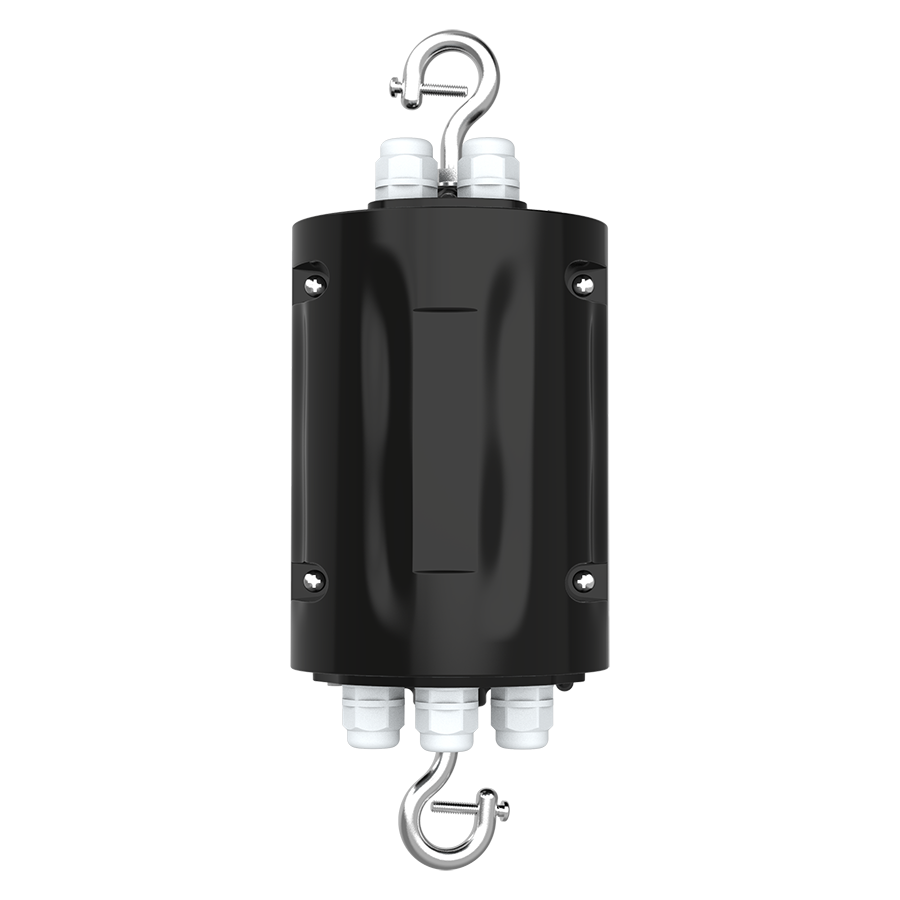

Battery backup kit
Input Power (W)
12W max
Compliance
UL Listed
UL Listed
UL 924
Charge Time: 24 hours
Emergency Run Time: 90 min
Emergency Run Time: 90 min
California Energy Commission (CEC) Status
CEC Title 20
Construction
Finish
Formulated for high durability and long-lasting color
Electrical
Power Factor
0.6@100Vac_0.5@347Vac
Emergency Wattage
30W
Input Voltage
100-347VAC,50/60Hz
Input Current
0.15A max
Output Voltage
120-200Vdc 250V MAx
Battery Backup
Rechargeable Lithium Ion
Ambient Temperature
32°F to 122°F (0°C to 50°C)
Battery Capacity
14.8V/5200mAh
Other
Compatible Products
H17S, H17, H17XL
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
The EMHB is not compatible with all of the PIR40 Series, the MVS20 Series or the MVS50 Series.
