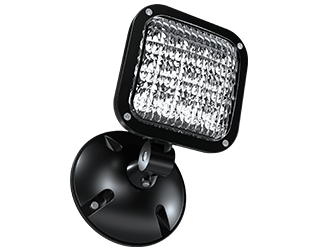

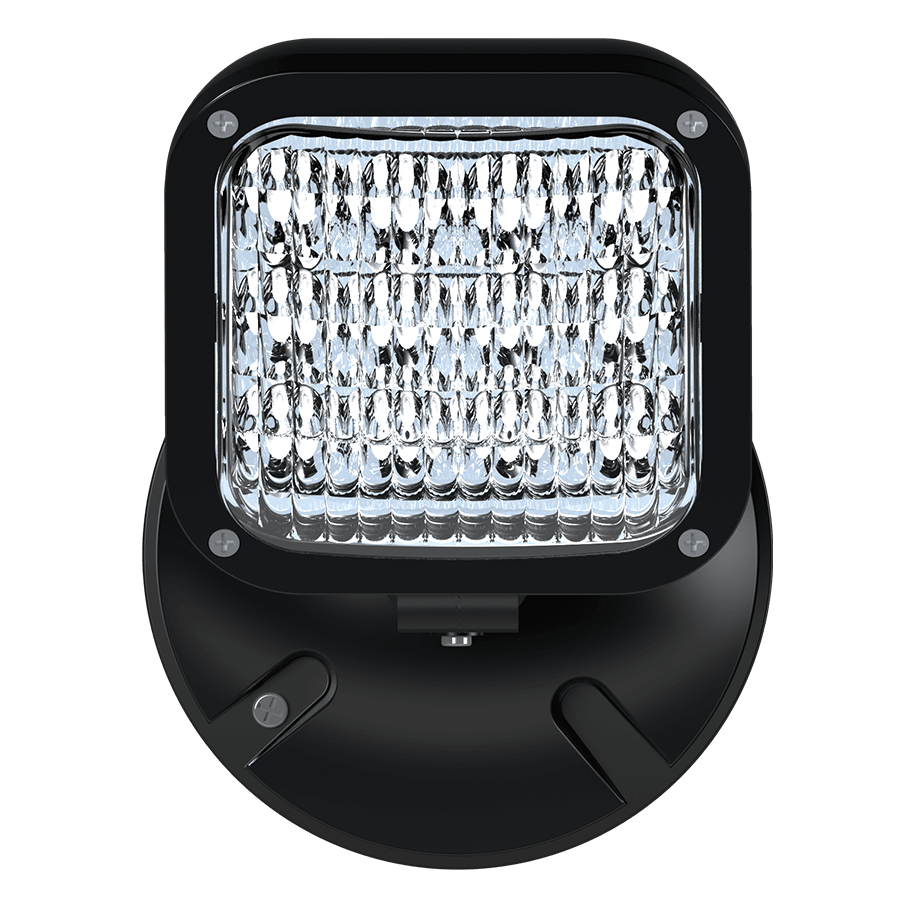

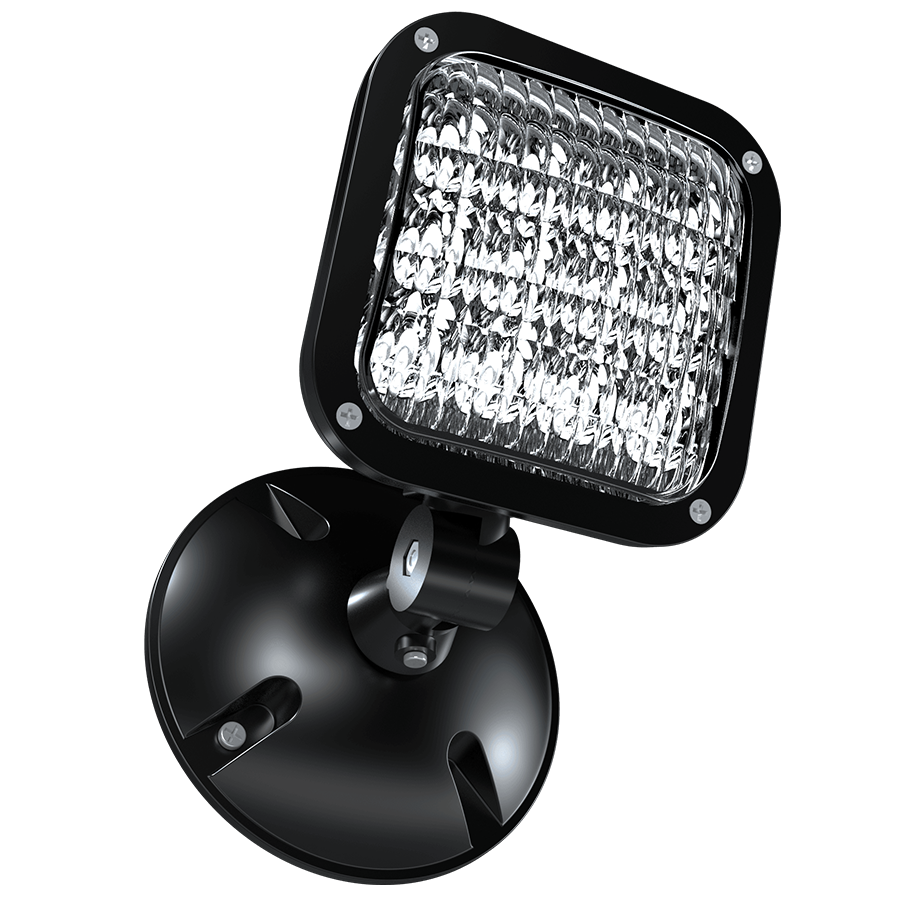

EREMOTEOUT-1HB

Spec Sheet EM Remote Head Compatibility List Spec Sheet

EREMOTEOUT-1HB

Durable thermoplastic design

Remote head capable, see Remote Head Compatibility List

View Technical Specs

View Price & Availability

Dimensions

Weight: 1.0 lbs

Technical Specifications

Performance

Product Type

Emergency Unit, Remote Head

Description

Outdoor Thermoplastic Remote Single Head

Lumens

65lm

Electrical

Input Voltage

Multi-Volt (3.6V,9.6V,6V,12V)

Dual Voltage Circuit Operation

Operating Temperature

-22°F to 122°F (30°C to 50°C)

Self Diagnostics

No, manual test only

Remote Test Switch

Installation

Mounting Method

Back

Mounting Type

Wall

Maximum Mounting Height (ft.)

15 ft

Emergency Egress Coverage(ft) Mounting at height of 7.5ft

14 ft x 3 ft mounted @ 7.5 ft

Cold Weather Rated

Application

For Standard Non Self-Diagnostic Fixtures

Construction

Shape

Rectangle

Housing Material

Die Cast Aluminum

Housing Color

Black

No. of Heads

1-Lamp Head

Head Shape

Square

Remote Head Power (W)

1.5W

Compliance

Listings

UL924 Listed

Environment

Suitable for indoor or outdoor use in dry, damp, and wet environments

IP Rating

Indoor/Outdoor

Certification Model Number

RHLED1-WP-MVB-HL

T20 Compliant

Not applicable

California Title 24 JA8 Compliant

Not applicable

California Energy Commission (CEC) Status

Lawful for Sales in California

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

See Remote Head Compatibility List

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
