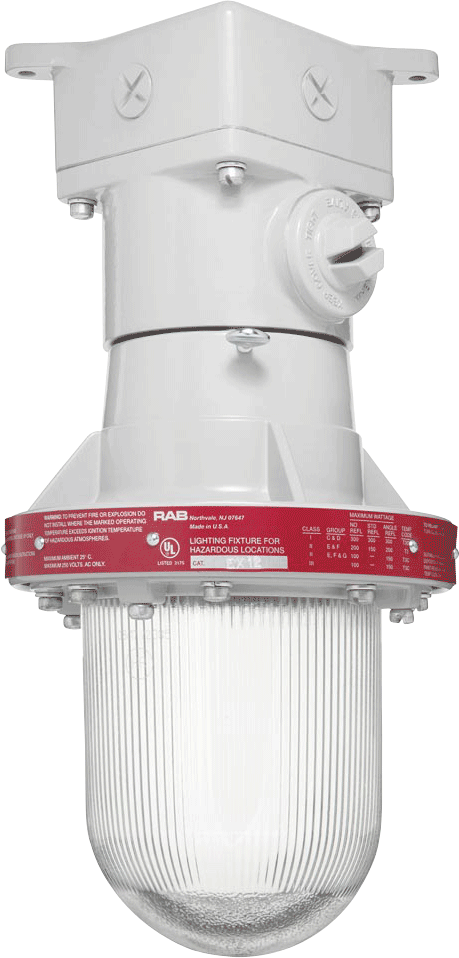

EX12
- Fixture comes complete with built-in junction box
- Cast aluminum construction with gray polyester powder coat finish
- Easy relamping with a single thumb screw
- Factory sealed for easy installation
- Heat and impact resistant prismatic glass globe
- Die cast guard
- Easy field installation
Performance
| Watts | 300W |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |

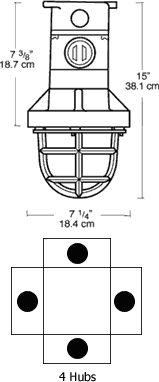

Dimensions
Weight: 10.8 lbs
Technical Specifications
Construction
Housings
Heavy-cast aluminum. Unit withstands 1490 lbs. per square inch hydrostatic pressure.
Globe
Impact and heat resistant clear prismatic design affords excellent light control
Finish
Formulated for high durability and long-lasting color
Reflectors
Heavy gauge aluminum with highly reflective white acrylic finish
Hub Size
1/2"
Hub Count
4
Guard not supplied
Weight
11 lb / 5 kg
Electrical
Wiring
Wiring is factory sealed. Inspection hole provides easy access to splice compartment.
Socket
Medium base glazed porcelain. Leads pass through sealing compound that separates lamp chamber from wiring compartment. Heavy gauge nickel plated copper components. Spring loaded center contact.
Other
Refer to the catalog for Class and Division specifications
Recently Viewed Products
CDLED6PS-20W-80D935-K
Cylinders 1744 Lumens Cdled 20W 6 Inches With Pendant Stem 90Cri 3500K Matte Black
IVGT5-50L730WU/LC
Garage Lights 5747 Lumens Ivgt5 Type V 45W 70Cri 3000K White 120V-277V 0-10V Dimming Lightcloud Controller
HALVS18L940-FG3-S/LC
Architectural 1462 Lumens Halvs Forward & Up/Down Light 25W 90Cri 4000K Frosted Lens With Grill Style 3 Silver Finish Lightcloud Controller

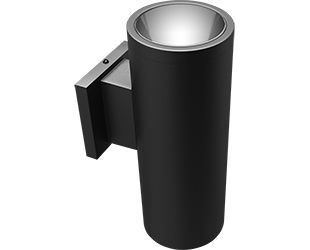

CDLED4WU-20W-80D940-K
