FALCORA230W/D10
FALCORA230W/D10
- High-output, high performance industrial high bay
- High ambient temperature rating of 55°C
- Diffusion lens reduces glare
- Multiple mounting options: pendant, surface or chain
- 100,000-Hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 230W |
| Color Temp | 5100K (Cool) |
| Lumens | 19,892 lm |
| Efficacy | 84.5 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.99A |
| 208V | 1.21A |
| 240V | 1.05A |
| 277V | 0.88A |
| Input Watts | 235.5W |

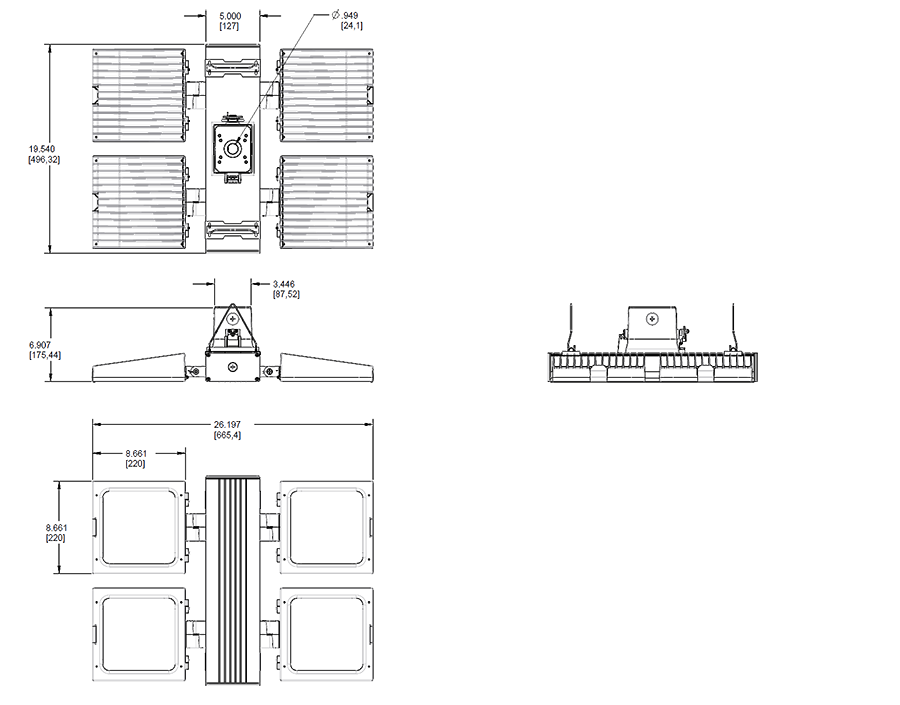

Dimensions
Weight: 41.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Suitable for use in up to 131°F (55°C)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Electrical
Drivers
Constant Current, Class 2, 100-277V, 50/60 Hz, 120V: 1.99A, 208V: 1.2A, 240V: 1.04A, 277V: 0.88A, 4kV surge protection
THD
4.3% at 120V, 9.1% at 277V
Power Factor
99.8% at 120V, 95.1% at 277V
