GUS2/E
GUS2/E
- Affordable, easy to use LED wrap fixture
- 0-10V dimming, standard
- 50,000-Hour LED lifespan
Performance
| Watts | 22/17/11W |
| Color Temp | 3500/4000/5000K |
| Lumens | 1,503-3,040 lm |
| Efficacy | 125.3-133.3 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant |
| 120V | 0.20A/0.15A/0.10A |
| 208V | 0.11A/0.10A/0.07A |
| 240V | 0.10A/0.08A/0.06A |
| 277V | 0.09A/0.07A/0.05A |
| Input Watts | 11.8-23.4W |
Dimensions
Weight: 5.3 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
2 ft: 22W/17W/11W (factory default 22W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
2 ft: 22W/17W/11W (factory default 22W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
22W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.20A, 208V: 0.11A, 240V: 0.10A, 277V: 0.09A
17W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
11W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.10A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
17W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
11W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.10A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
1.29% at 120V, 9.1% at 277V
Power Factor
99.8% at 120V, 96.6% at 277V
Surge Protection
DM: 1 kV
CM: 2 kV
CM: 2 kV
Recently Viewed Products

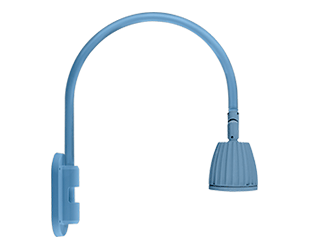

GN4LED26YSLB
Decorative 1312 Lumens Gooseneck 26W 3000K 20 Inches High & 19 Inches From The Wall Spot Reflector No Shade Light Blue
NDLED6SD-WY-W-B
Recessed Downlights 20 Lumens Ndled6Sd 6 Inch Square Universal Dimming Wall Washer Beam Spread 3000K 80Cri White Cone Black Trim
LOT3T65N/D10/7PR
Area Lights 8865 Lumens Lotblaster 65W 4000K Type Iii 0-10V Dimming 120V-277V 7-Pin Receptacle Bronze

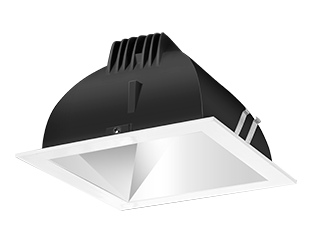

NDLED4SD-WN-M-W
