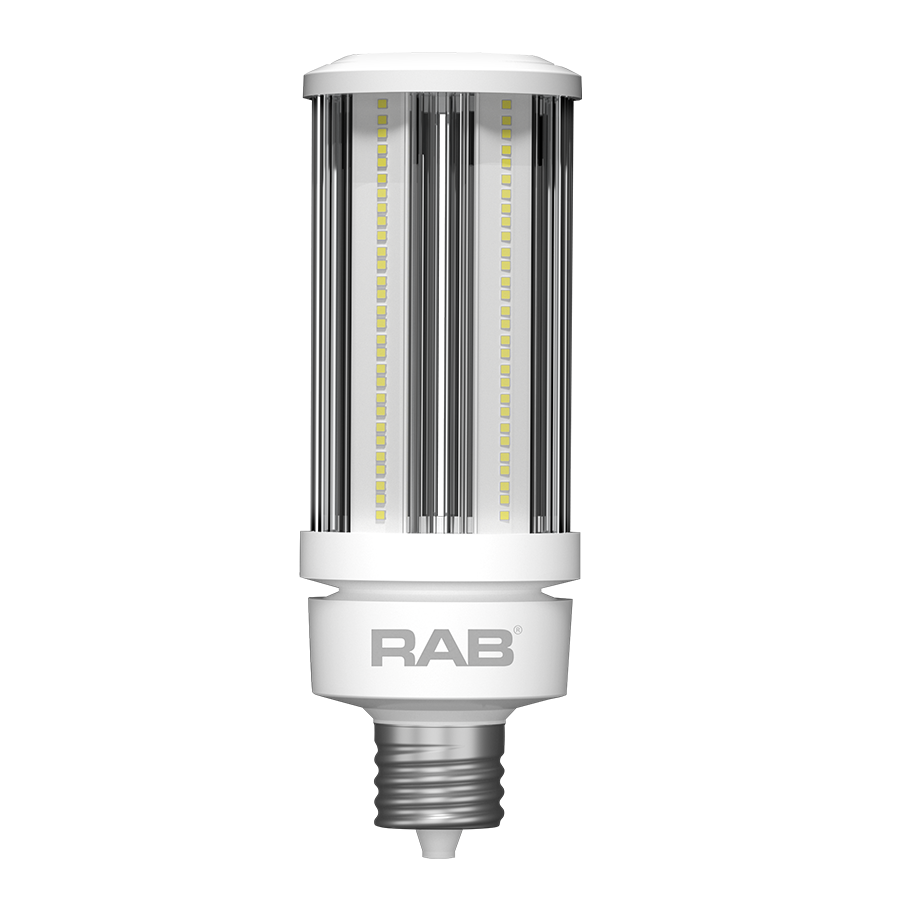

HID-50-EX39-850-BYP-PT-ECO
HID-50-EX39-850-BYP-PT-ECO
- Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed and open fixtures in dry or damp locations
- 4kV surge protection built in
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed
- Non-Dimmable
- 5 Year Limited Warranty
Performance
| Watts | 54W |
| Color Temp | 5000K |
| Lumens | 7,500 lm |
| Efficacy | 135 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 1.5 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
54W
Lumens
7,500lm
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
200W
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
5000K
Beam Angle
300°
Electrical
Power Factor
>0.9
Dimmable
Non-Dim
Input Voltage
100-277V
Operating Frequency
60 Hz
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Construction
Shape
Post Top
Enclosure Material
Polycarbonate & Metal heat sink
Housing Finish
White
Installation
Base Type
EX39
Installation Method
UL Type B, Ballast Bypass
Burning Position
Universal
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed
Environment
Damp / Enclosed
IP Rating
IP64
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
H10044(HID-50-EX39-850-BYP-PT-ECO)
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
