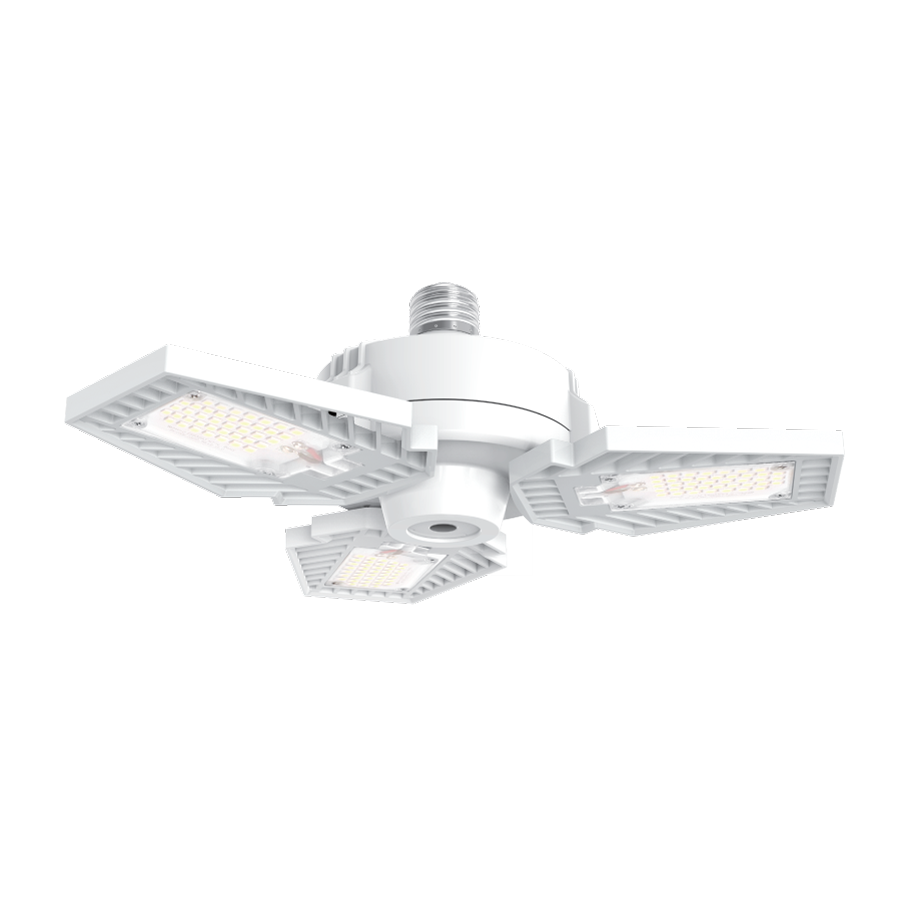

HID-65-V-E26-850-BYP-GL/LCBR
HID-65-V-E26-850-BYP-GL/LCBR
- Adjustable wings to direct light where you want it
- Control with Lightcloud Blue using the 5-Pin Plug-in Controller
- Rated for use in enclosed fixtures in dry or damp locations
- AUX port for integrating individual, lamp-level controls
Performance
| Watts | 65W |
| Color Temp | 5000K |
| Lumens | 8,000 lm |
| Efficacy | 123 |
| Color Accuracy | 80 CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 65W |
Dimensions
Weight: 1.4 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Wattage Equivalency
200W Metal Halide
Input Wattage
65W
Lumens
8,000lm
Efficacy
123lm/W
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results
Lightcloud
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Electrical
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, via the Lightcloud Blue mobile app and devices.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
0.6mA
Input Current @ 208V (mA)
.35mA
Input Current @ 240V (mA)
.30mA
Input Current @ 277V (mA)
.26mA
Surge Protection
4 kV
LED Characteristics
Color Temperature
5000K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 no less than 0
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Beam Angle
120°-270° adjustable
Installation
Installation Method
UL Type B, Ballast Bypass
Installation Orientation
Vertical
Base Type
E26 Edison
Construction
Finish
White
Shape
Garager Lighter w/ sensor port
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Lens Finish
Clear
Compliance
Listings
UL Listed
Environment
Suitable for use in dry and damp environments
Fixture Rating
Suitable for use in enclosed fixtures
IP Rating
IP64
Certification Model Number
HID-65-V-E26-850-BYP-GL/LCBR
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Compatible Products
Add the Lightcloud Blue 5-Pin Plug-in Controller with optional sensor to connect to the Lightcloud Blue Bluetooth Mesh Wireless Network Lighting Control System. Learn more about Lightcloud Blue.
Accessories
CONTROL/W/AUX/5SP/LCB
Lightcloud Blue 5-Pin Plug-in Controller
CONTROL/W/AUX/5SP/LCBS
Lightcloud Blue 5-Pin Plug-in Controller with PIR Sensor
CONTROL/W/AUX/5SP/LCBS/MVS
Lightcloud Blue 5-Pin Plug-in Controller with MVS Sensor
DAYLIGHT-S
3-Pin Daylight photocell sensor
MW-S
3-Pin Microwave sensor w/photocell
SMW-S
3-Pin Microwave sensor
SPIR-S
3-Pin Passive Infrared sensor
XFMR200-480-277
Transformer 200W 480V
Lightcloud Blue 5-Pin Plug-in Controller
CONTROL/W/AUX/5SP/LCBS
Lightcloud Blue 5-Pin Plug-in Controller with PIR Sensor
CONTROL/W/AUX/5SP/LCBS/MVS
Lightcloud Blue 5-Pin Plug-in Controller with MVS Sensor
DAYLIGHT-S
3-Pin Daylight photocell sensor
MW-S
3-Pin Microwave sensor w/photocell
SMW-S
3-Pin Microwave sensor
SPIR-S
3-Pin Passive Infrared sensor
XFMR200-480-277
Transformer 200W 480V
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
ALED2T78SFK/480/D10/WS4
Arealights 9552 Lumens Aled Type Ii Slipfitter 5000K 78W 480V 0-10V Dimming Multi-Level Sensor With 40 Feet Lens Black
CDLED4PC-20W-50D930-Z
Cylinders 1735 Lumens Cdled 20W 4 Inches With Pendant Cord 48 Inches 90Cri 3000K Bronze

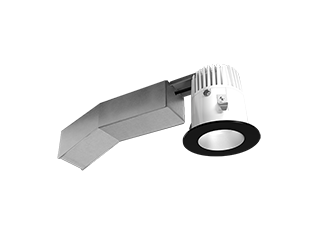

RDDLED2R-10D-WYNHC-M-BT
