HID-80-EX39-830-BYP-PT
HID-80-EX39-830-BYP-PT
- Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps
- Active Cooling: Internal sensor overheat and engaged will automatically reduce output to 70% rated wattage until the sensor cools and will light up again to 100%
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed and open fixtures in dry or damp locations
- 4kV surge protection built in
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, UL Classified
- Non-Dimmable
- 5 Year No Compromise Warranty
Performance
| Watts | 80W |
| Color Temp | 3000K (Warm White) |
| Lumens | 10,400 lm |
| Efficacy | 130 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | 0.9 |
| Flicker | <30% |
| THDi | N/A |

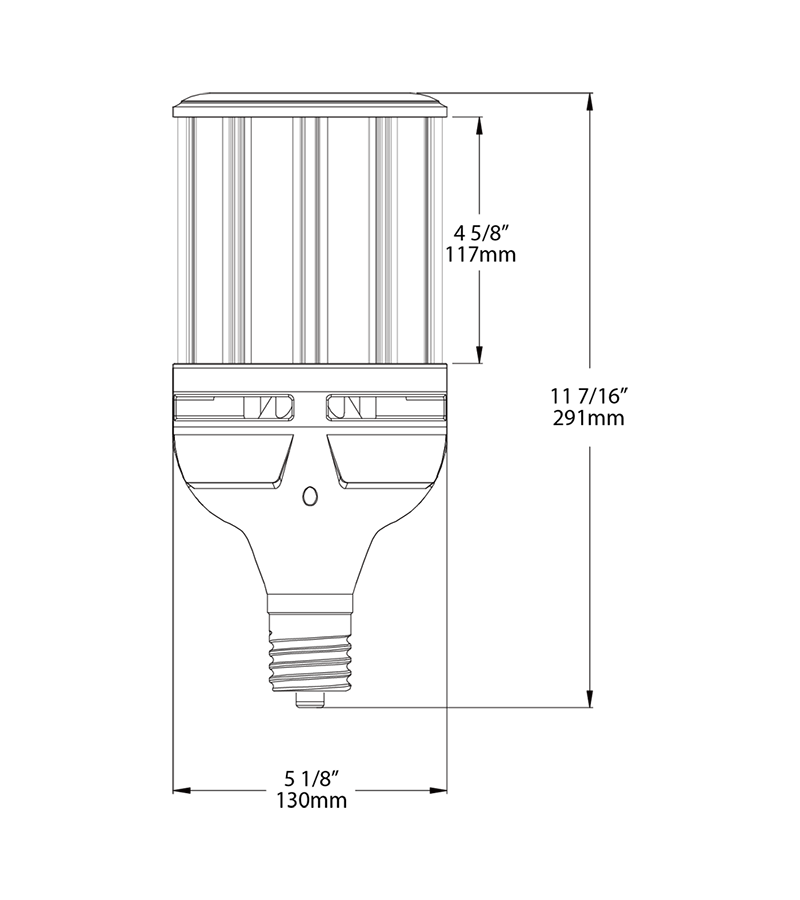

Dimensions
Weight: 3.6 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
80W
Wattage Equivalency
320W HID
Lumens
10,400lm
Efficacy
130lm/W
L70 Lifespan
50,000 Hours
Construction
Shape
Post Top
For Use Outdoors in Open Fixtures
Yes
LED Characteristics
Color Temperature
3000K Warm White
Color Accuracy (CRI)
80 CRI
Beam Angle
360°
Installation
Base Type
EX39
Installation Type
Type B, Ballast Bypass
Installation Orientation
For Vertical Installation Only
Electrical
THD
<20%
Power Factor
0.9
Operating Temperature
-30°C to 60°C
Dimmable
No
Input Voltage
100-277V
Operating Frequency
50/60Hz
Flicker
<30%
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Listed
Yes
UL Classified
Yes
California Energy Commission (CEC) Status
Lawful for Sales in California
Certification Model Number
H20013
