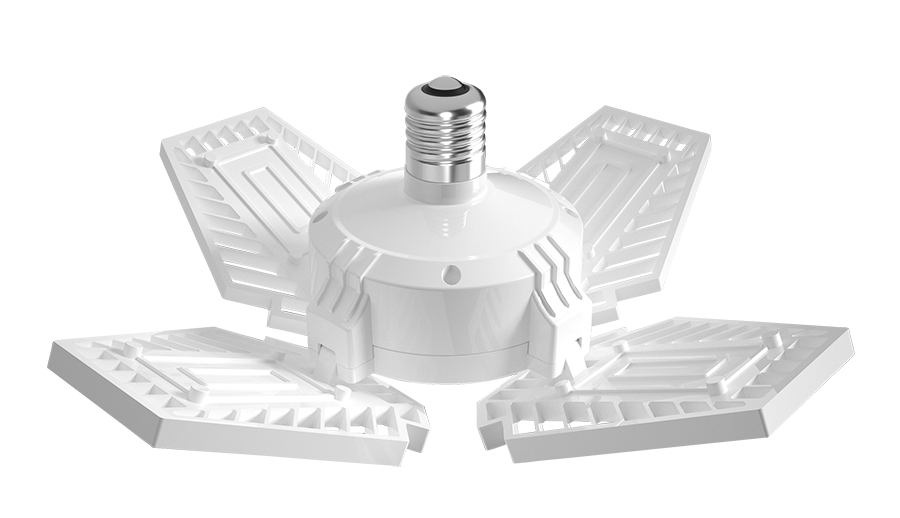

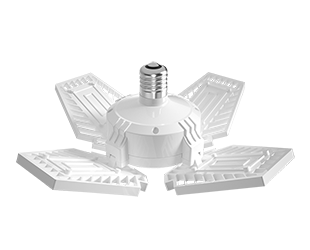

HID-80-V-E26-850-BYP-GL
HID-80-V-E26-850-BYP-GL
- UL Damp Rated
- 25,000-hour LED lifespan
- 3-Year, No-Compromise Warranty
Performance
| Watts | 80W |
| Color Temp | 5000K (Cool) |
| Lumens | 10,000 lm |
| Efficacy | 125 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 25,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | Yes |
| THDi | 0.2 |
Dimensions
Weight: 1.6 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
80W
Lumens
10,000lm
Efficacy
125lm/W
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
250W Metal Halide or High Pressure Sodium
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
LED Characteristics
Color Temperature
5000K
Color Accuracy (CRI)
80 CRI
Beam Angle
120°-270° adjustable
Construction
Shape
Deformable
Endcap Material
Polycarbonate
Enclosure Material
Aluminum
Installation
Base Type
E26 Edison
Installation Orientation
Vertical
Electrical
THD
20%
Power Factor
>0.9
Operating Temperature
-35°C to 40°C
Input Voltage
120-277V
Operating Frequency
50/60Hz
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
