HID-80-V-EX39-850-BYP-HB-G2
HID-80-V-EX39-850-BYP-HB-G2
- Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps
- Produces 10% uplight
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed and open fixtures in dry or damp locations
- 4kV surge protection built in
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, UL Classifed, DLC Listed
- 5 Year No Compromise Warranty
- Lamp includes on board low-voltage AUX port for lamp level sensor accessories
- Compatible with RAB specified 0-10V dimming system
Performance
| Watts | 80W |
| Color Temp | 5000K (Daylight) |
| Lumens | 10,800 lm |
| Efficacy | 135 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | 0.9 |
| Flicker | <30% |
| THDi | N/A |

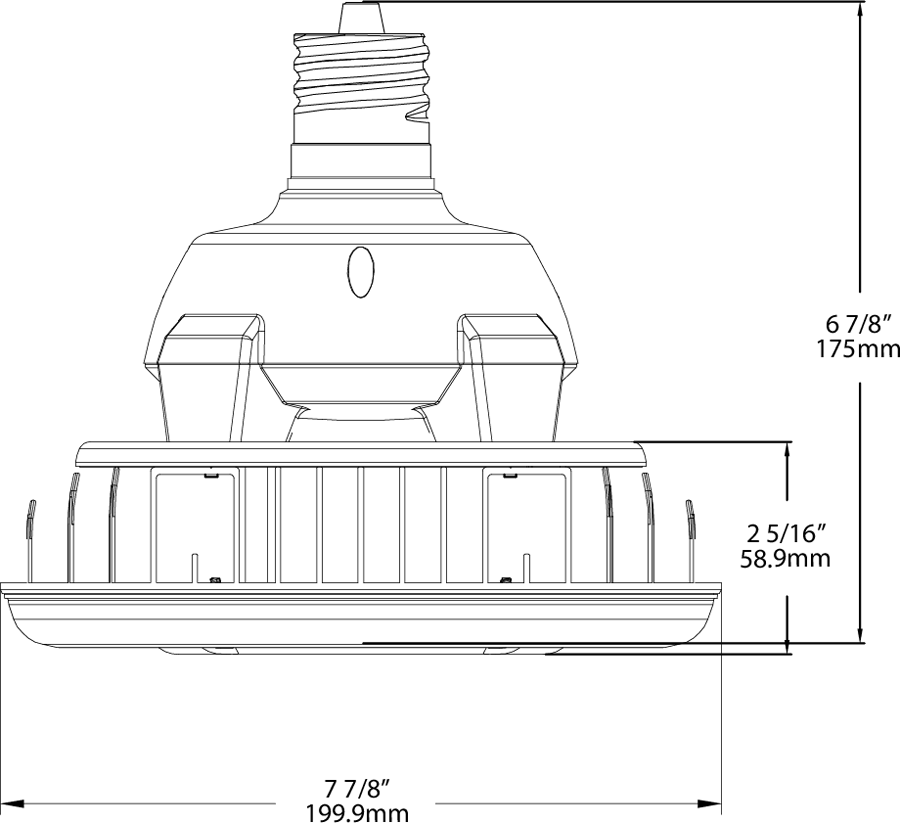

Dimensions
Weight: 2.5 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
80W
Wattage Equivalency
250W HID
Lumens
10,800lm
Efficacy
135lm/W
L70 Lifespan
50,000 Hours
Dimming
Compatible with RAB specified 0-10V dimming system. Dimming capabilities were tested and verified on Legrand RH4FBL3PTC 0-10V dimming system.
Construction
Shape
High Bay
LED Characteristics
Color Temperature
5000K Daylight
Color Accuracy (CRI)
80 CRI
Installation
Base Type
EX39
Installation Type
Type B, Ballast Bypass
Installation Orientation
Vertical
Electrical
THD
<20%
Power Factor
>0.9
Operating Temperature
-30°C to 60°C
Input Voltage
100-277V
Operating Frequency
50/60Hz
Input Current @ 120V
0.89mA
Flicker
<30%
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Listed
Yes
UL Classified
Yes
Certification Model Number
H20010
California Energy Commission (CEC) Status
Lawful for Sales in California
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
