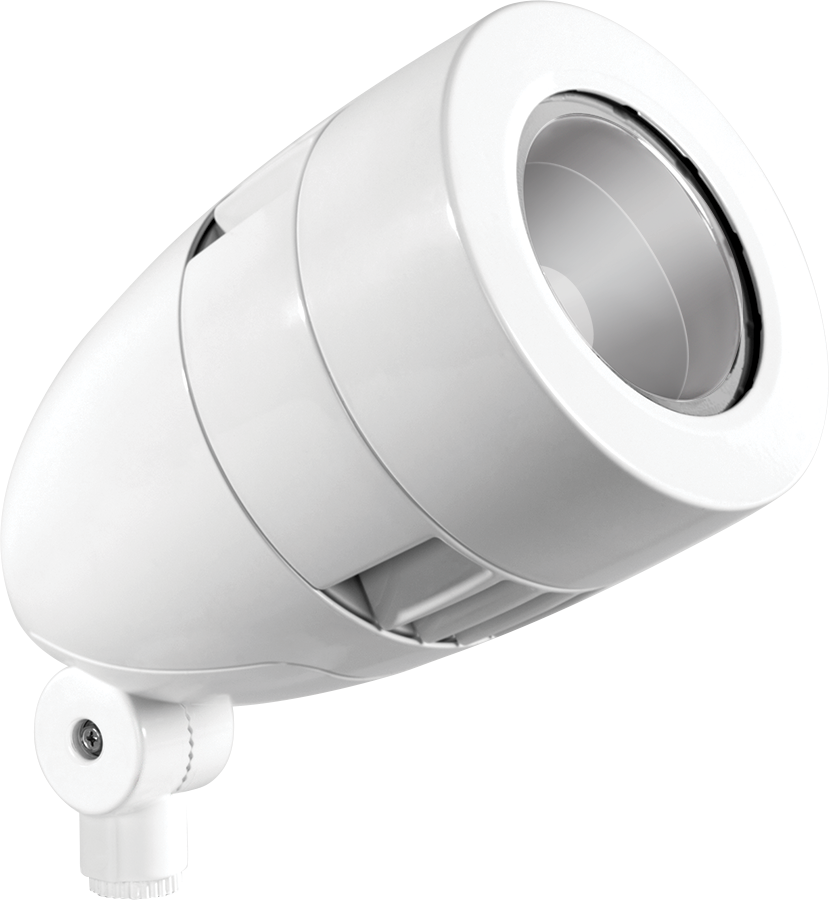

HNLED26YW/D10
HNLED26YW/D10
- 80% energy savings vs. PAR floods
- Mount on junction box or on RAB Mighty Post
- Patent-pending "Air-Flow" technology
- NEMA type - 3H x 3V
- 5-Year, No-Compromise Warranty
Performance
| Watts | 26W |
| Color Temp | 3000K (Warm) |
| Lumens | 3,122 lm |
| Efficacy | 114.8 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.23A |
| 208V | 0.13A |
| 240V | 0.11A |
| 277V | 0.07A |
| Input Watts | 27.2W |
Dimensions
Weight: 4.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Stability
RAB LEDs exceed industry standards for chromatic stability
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Thermal Management
Superior heat sinking with external Air-Flow fins
Housing
Precision die-cast aluminum housing, lens frame and mounting arm
Reflector
Semi-specular, vacuum-metalized polycarbonate
Gaskets
High-temperature silicone gaskets
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws
Optical
NEMA Type
NEMA Beam Spread 3H x 3V
Electrical
Driver
Constant Current, 120-277V with 4kV surge protection, 120V: 0.23, 208V: 0.13A, 240V: 0.11A, 277V: 0.11A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.72% at 120V, 5.7% at 277V
Power Factor
92.5% at 120V, 99.7% at 277V
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
