IVAFT-100LSF750WU/LC
Performance
| Watts | 94W |
| Color Temp | 5000K (Cool) |
| Lumens | 10,594 lm |
| Efficacy | 111.3 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.83A |
| 208V | 0.48A |
| 240V | 0.42A |
| 277V | 0.36A |
| Input Watts | 95.2W |
Dimensions
Weight: 12.9 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud

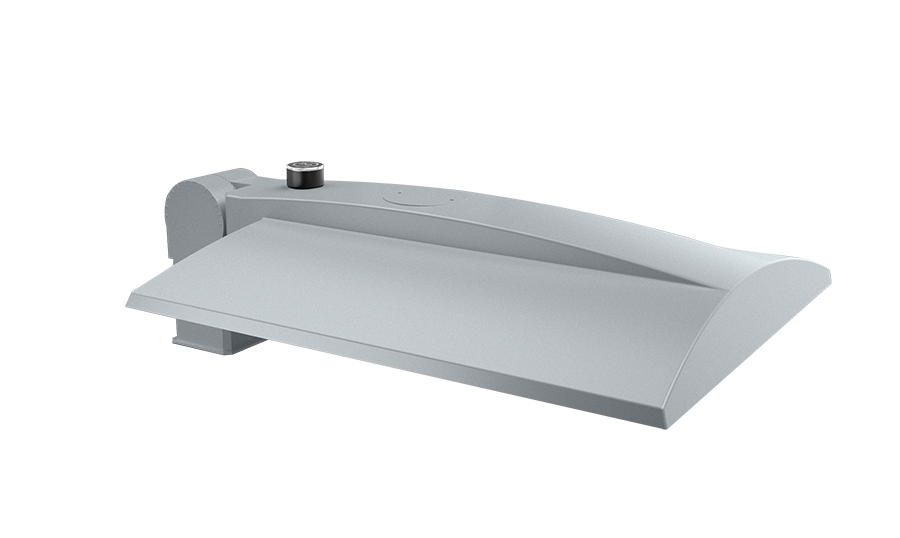

Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-AV86C9
DLC Product Code: S-AV86C9
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.19% at 120V, 8.46% at 277V
Power Factor
99.8% at 120V, 96.5% at 277V
Recently Viewed Products
CDLED4WD-20W-50D927-S
Cylinders 1574 Lumens Cdled 20W 4 Inches Wall Direct(Downlight) Only 90Cri 2700K Matte Silver
CDLED6WD-26W-50D927-S
Cylinders 2127 Lumens Cdled 26W 6 Inches Wall Direct(Downlight) Only 90Cri 2700K Matte Silver

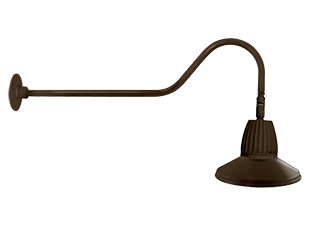

GN2LED13YSSTBWN
