IVAFT-75LPA740GH/WS
IVAFT-75LPA740GH/WS large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 67W
Color Temp 4000K (Neutral)
Lumens 7,972 lm
Efficacy 117.8 lm/W
Color Accuracy 73 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 67.7W
Dimensions
Link to Dimension Drawing

Weight: 14.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-UICFO1
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
13.6% at 480V
Power Factor
95.5% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Recently Viewed Products

This is a link to the product IVAFT-75LPA740GH/WS IVAFT-75LPA740GH/WS
Area Lights 7972 Lumens Ivaft Forward Throw 67W Universal Pole Mount 70Cri 4000K Roadway Gray 347-480V 0-10V Dimming 8 Feet Lens Wattstopper Sensor
This is a link to the product HALVS18L935-LH-SA/E2 HALVS18L935-LH-SA/E2
Architectural 303 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3500K Linen Harbor Lens Satin Nickel Finish Battery Backup

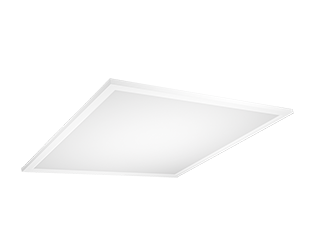

This is a link to the product T34FAHE-2X2 T34FAHE-2X2
