IVAT2-45LPA730WH/WS
Performance
| Watts | 38W |
| Color Temp | 3000K (Warm) |
| Lumens | 4,687 lm |
| Efficacy | 110.5 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 42.4W |
Dimensions
Weight: 14.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-K03QDN
DLC Product Code: S-K03QDN
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.78% at 480V
Power Factor
96.2% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Recently Viewed Products
VANLED65NFFRW/480/WS2
Canopy Lights 8668 Lumens Vanled 65W 4000K 480V Flat Frosted Lens 277V Wattstopper Sensor White
IVAT2-45LPA730WH/WS
Area Lights 4687 Lumens Ivat2 Type Ii 38W Universal Pole Mount 70Cri 3000K White 347-480V 0-10V Dimming 8 Feet Lens Wattstopper Sensor
HALVS18L927-MC-W/LC
Architectural 409 Lumens Halvs Forward & Up/Down Light 25W 90Cri 2700K Metallic Spun Copper Lens White Finish Lightcloud Controller

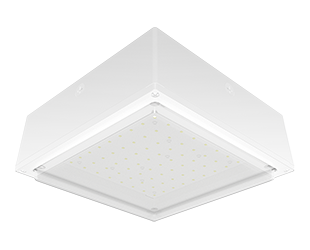

VANLED52YFRW/MVS
