IVAT2-75LPA730KH/WS4
IVAT2-75LPA730KH/WS4 large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 67W
Color Temp 3000K (Warm)
Lumens 8,158 lm
Efficacy 111.6 lm/W
Color Accuracy 80 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 73.1W
Dimensions
Link to Dimension Drawing

Weight: 14.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-IDR4K0
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.78% at 480V
Power Factor
96.2% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Recently Viewed Products

This is a link to the product IVAT2-75LPA730KH/WS4 IVAT2-75LPA730KH/WS4
Area Lights 8158 Lumens Ivat2 Type Ii 67W Universal Pole Mount 70Cri 3000K Black 347-480V 0-10V Dimming 40 Feet Lens Wattstopper Sensor
This is a link to the product A17-5T375 A17-5T375
Area Lights A17 V 375/300/240W 3000K/4000K/5000K 120-277V Pole Mount Bronze
This is a link to the product HALVS18L930-MP-S/E2 HALVS18L930-MP-S/E2
Architectural 288 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3000K Metallic Platinum Lens Silver Finish Battery Backup
This is a link to the product ALEDM5TWMN/WS2 ALEDM5TWMN/WS2
Aled 78-90-150W T5 4000K Neutral Wall Mt Wattstop 20Ft Lens Bronze

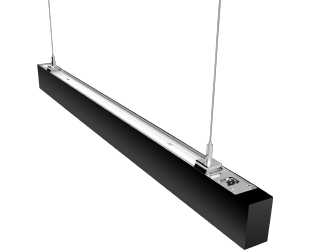

This is a link to the product BOA3PUB/MVS BOA3PUB/MVS
