IVAT2-75LSF750ZH/WS4
Performance
| Watts | 67W |
| Color Temp | 5000K (Cool) |
| Lumens | 8,140 lm |
| Efficacy | 112.6 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 72.3W |
Dimensions
Weight: 12.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-P34CJL
DLC Product Code: S-P34CJL
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
11.61% at 480V
Power Factor
96% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Recently Viewed Products
IVAT2-75LSF750ZH/WS4
Area Lights 8140 Lumens Ivat2 Type Ii 67W Slipfitter Mount 70Cri 5000K Bronze 347-480V 0-10V Dimming 40 Feet Lens Wattstopper Sensor

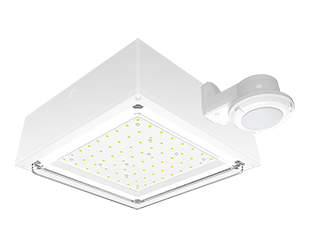

VANLED52NW/WS2
Canopy Lights 8064 Lumens Vanled 52W 4000K Drop Clear Lens 277V Wattstopper Sensor White

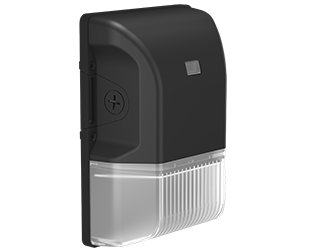

BRISK17FA20
