IVAT3-45LPA750WH/WS2
Performance
| Watts | 38W |
| Color Temp | 5000K (Cool) |
| Lumens | 5,272 lm |
| Efficacy | 124.3 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 42.4W |
Dimensions
Weight: 14.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.66% at 480V
Power Factor
96.1% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Recently Viewed Products
IVAT3-45LPA750WH/WS2
Area Lights 5271.5 Lumens Ivat3 Type Iii 38W Universal Pole Mount 70Cri 5000K White 347-480V 0-10V Dimming 20 Feet Lens Wattstopper Sensor
A17-5T150N/3PRS
Arealights 19803.8 Lumens A17 Type V 150W Led 120V-277V Pole Mt 3-Pin Receptacle Shorting Cap Bronze

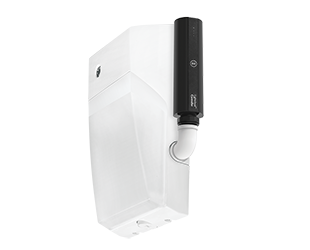

WPTLED25W/D10/PC2/LC
