IVAT3-45LSF750ZU/WS2
Performance
| Watts | 38W |
| Color Temp | 5000K (Cool) |
| Lumens | 4,963 lm |
| Efficacy | 124.4 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.33A |
| 208V | 0.19A |
| 240V | 0.17A |
| 277V | 0.14A |
| Input Watts | 39.9W |
Dimensions
Weight: 12.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-CARGTS
DLC Product Code: S-CARGTS
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
9.36% at 120V, 17.01% at 277V
Power Factor
99% at 120V, 92% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Recently Viewed Products
IVAT3-45LSF750ZU/WS2
Area Lights 4963 Lumens Ivat3 Type Iii 38W Slipfitter Mount 70Cri 5000K Bronze 120V-277V 0-10V Dimming 20 Feet Lens Wattstopper Sensor

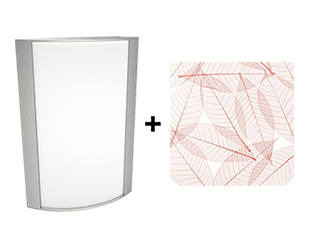

HALV18L940-TL-SA
Architectural 406 Lumens Halv Forward Light 25W 90Cri 4000K Toffee Leaves Lens Satin Nickel Finish

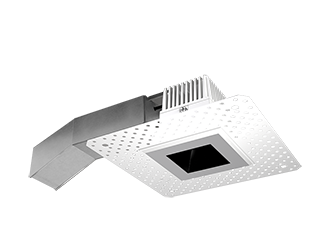

RDDLED2S-10D-40YHC-B-STL
