• 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 67W
Color Temp 3000K (Warm)
Lumens 7,580 lm
Efficacy 109.4 lm/W
Color Accuracy 79 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 69.3W
Dimensions
Link to Dimension Drawing

Weight: 12.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-Q0PMT2
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.9% at 480V
Power Factor
93.5% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Recently Viewed Products

 This is a link to the product SUMO12/LCB SUMO12/LCB
Lc Blue Slim Sumo 12" 24W 1900Lm Cri90 2700-6500K Smartshift 120-277V Round White
 This is a link to the product SLIM22-S-30/E SLIM22-S-30/E
Slim Wall Pack Small 30/25/20/15W 3000K/4000K/5000K Batt B/U Adjustable Optic 0Deg, 15Deg, 30Deg, 45Deg Bronze
 This is a link to the product HALVS18L940-MG-W HALVS18L940-MG-W
Architectural 445 Lumens Halvs Forward & Up/Down Light 25W 90Cri 4000K Metallic Spun Gold Lens White Finish
 This is a link to the product X34S X34S
35W/25W/20W Knuckle Bronze 3000K/4000K/5000K Selectable
 This is a link to the product R3-15B R3-15B
3" Recessed 15W 1000Lm 90 Cri 5Cct Triac 120V Round White Baffle

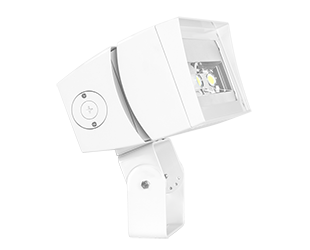

 This is a link to the product FFLED120TNW/D10 FFLED120TNW/D10
