SUMO12/LCB
SUMO12/LCB
- Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required
- Use mobile device to configure features for On/Off Control, Dim Level, Color Temperature, Schedules, Scenes, SmartShift and more
- Tunable White 2700-6500K with smooth transition between color temperatures
- Circadian SmartShift Ready to sync with local sunrise/sunset
Performance
| Watts | 24W |
| Color Temp | |
| Lumens | 1,900 lm |
| Efficacy | 79 |
| Color Accuracy | Tunable White 2700-6500K CRI |
| L70 Lifespan |
| Type | Constant Current, Class 2 |
| 120V | 0.20A |
| 208V | 0.12A |
| 240V | 0.11A |
| 277V | 0.09A |
| Input Watts | 24W |
Dimensions
Weight: 2.5 lbs
Technical Specifications
Performance
Product Type
Surface Mount
Description

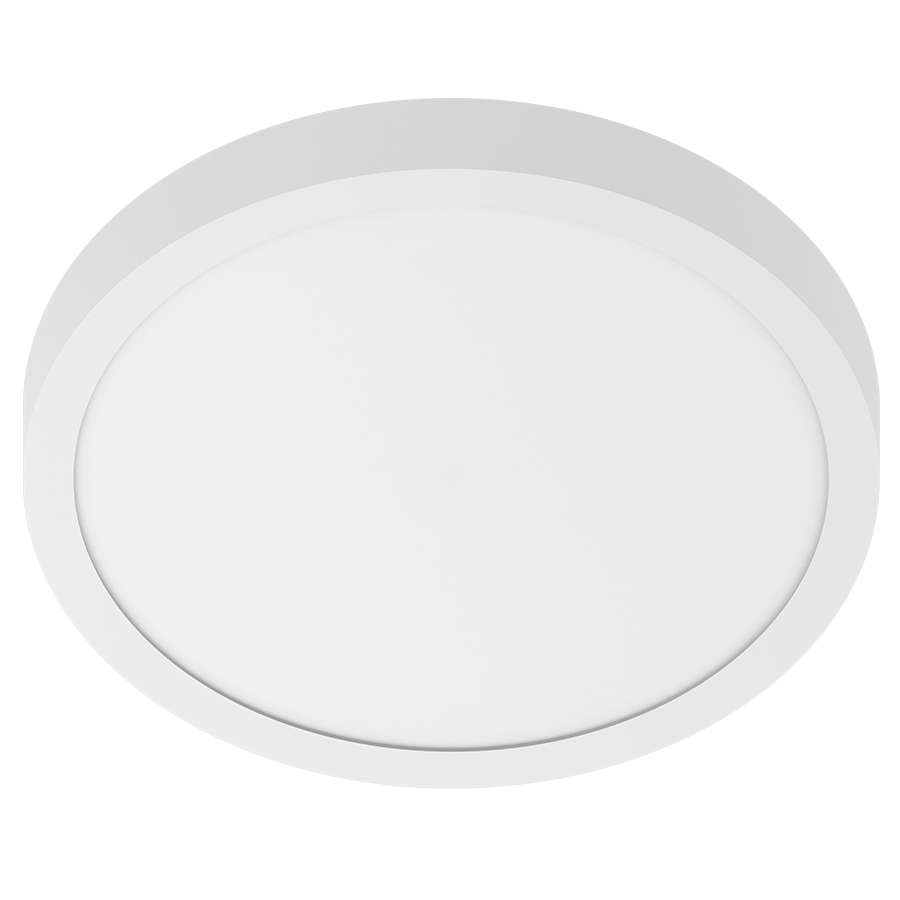

Contemporary ultra slim edge-lit surface mount downlight. SmartShift Ready downlight with wireless control for on/off, dimming and color temperature between 2700K-6500K. Ideal for new construction and retrofit applications. No Gateway or Hub required.
Wattage Equivalency
120W Incandescent
Lumens
1,900lm
Efficacy
79lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
SmartShift
SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 5 times and return to full brightness.
Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 5 times and return to full brightness.
Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.
Electrical
Driver
Constant Current, Class 2, 60 Hz, 120V-277V, 120V: 0.20A; 208V: 0.12A; 240V: 0.11A; 277V: 0.09A
THD
≤20%
Power Factor
≥0.9
Input Wattage
24W
Dimmable
Yes, via the Lightcloud Blue mobile app and devices.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Operating Frequency
60 Hz
Input Current @ 120V (mA)
200mA
Input Current @ 208V (mA)
121mA
Input Current @ 240V (mA)
105mA
Input Current @ 277V (mA)
94mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
<5%
LED Characteristics
Beam Angle
110°
Color Temperature
Default: 3000K
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200K - 6500K
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200K - 6500K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Surface Mount
Construction
Size
12"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Smooth
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for use in dry, damp, and wet environments.
IC Rated
No
Air Tight
No
DLC Listed
No
Certification Model Number
SUMO12/LCB
T20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
