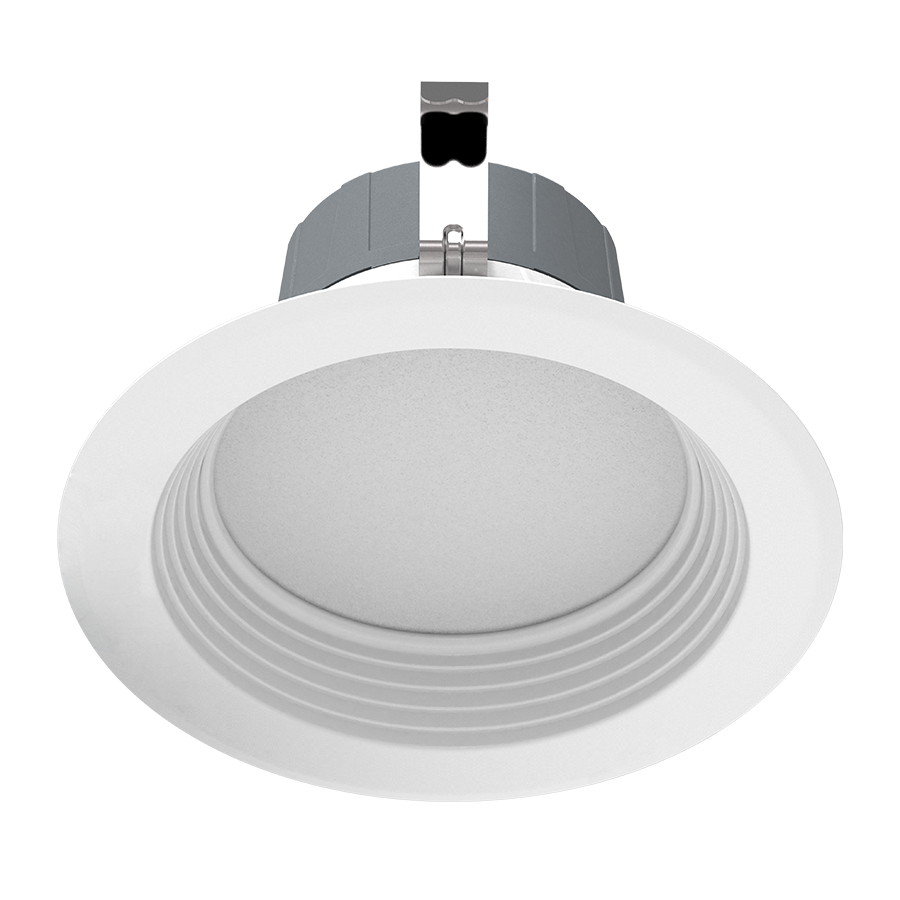

R4R8950120WB

High Performance LEDS up to 100 lm/w

Use to replace up to 100W traditional light sources

Durable metal construction: dent and scratch resistant

UL wet location rated

Compatible with most standard recessed housings

Dimmable down to 5% on compatible dimmers

Available in Round 4" 850lm and 6" 850lm, 1050lm and 1400lm

Available in 5 color temperatures: 2700K, 3000K, 3500K, 4000K, & 5000K

Available in a smooth and baffle trim option

Color designer trims as optional accessories available

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	8W
Color Temp	5000K
Lumens	715 lm
Efficacy	87.5
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	70
208V
240V
277V
Input Watts	8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

Retrofit

Lumens

700lm

Efficacy

87.5lm/W

Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 65W Incandescent

LED Characteristics

LEDs

LED array provides a uniform source with high efficiency and no pixilation

Color Accuracy (CRI)

90 CRI

Color Temperature

5000K

Electrical

THD

≤20%

Power Factor

≥0.9

Dimmable

TRIAC and ELV (at 120V only).

Input Voltage

120V

Operating Frequency

60Hz

Operating Temperature

-30°C - 40°C

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Construction

Size

Shape

Round

Housing Material

Metal

Finish

White

Trim Style

Baffle

Lens

Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance. Provides smooth and diffuse light distribution.

Gaskets

Achieve restrictive airflow requirements without additional caulking

Installation

Base Type

E26 Edison

Mounting

Pre-installed friction clips are designed to fit 4" compatible recessed housings

Compliance

Listings

UL Classified

Environment

Wet
