IVAT4-130LSF750KU/WS
Performance
| Watts | 117W |
| Color Temp | 5000K (Cool) |
| Lumens | 14,322 lm |
| Efficacy | 122.8 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.00A |
| 208V | 0.58A |
| 240V | 0.50A |
| 277V | 0.43A |
| Input Watts | 116.6W |
Dimensions
Weight: 12.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-IWT35J
DLC Product Code: S-IWT35J
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.36% at 120V, 6.76% at 277V
Power Factor
99.8% at 120V, 95.9% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Recently Viewed Products
IVAT5S-100LPA740WU/WS4/LC
Arealights 11508 Lumens Ivelot Type V Square 100W 10000L Pole 4000K Neutral 70Cri White 120V-277V Dimmable Multi-Level Sensor With 40 Feet Lens Lightcloud
LOT3T160/D10/WS4
Area Lights 22436 Lumens Lotblaster 160W Type Iii 0-10V Dimming 120V-277V Wattstopper Sensor With 40 Ft Lens Bronze

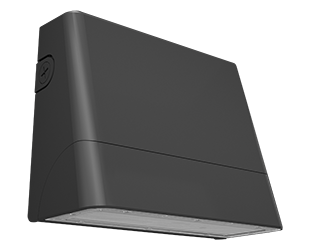

SLIM22-S-30
