IVAT5S-130LSF740KH/7PRLC
Performance
| Watts | 117W |
| Color Temp | |
| Lumens | 13,926 lm |
| Efficacy | 118.9 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 117.1W |
Dimensions
Weight: 13.5 lbs
Technical Specifications
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-OCREH0
DLC Product Code: S-OCREH0
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.56% at 480V
Power Factor
93.7% at 480V
Recently Viewed Products
IVAT3-75LSF750WU/WS4/LC
Area Lights 7565 Lumens Ivat3 Type Iii 67W Slipfitter Mount 70Cri 5000K White 120V-277V 0-10V Dimming 40 Feet Lens Wattstopper Sensor Lightcloud Controller
IVAT5S-45LPA740GU/WS
Area Lights 4801 Lumens Ivat5S Type V Square 38W Universal Pole Mount 70Cri 4000K Roadway Gray 120V-277V 0-10V Dimming 8 Feet Lens Wattstopper Sensor

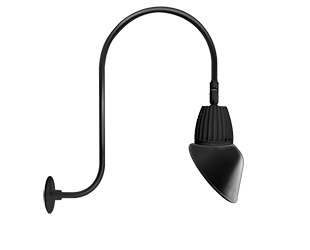

GN3LED13NRAC11B
