IVAT5S-75LSF730GH/WS4LC
Performance
| Watts | 67W |
| Color Temp | |
| Lumens | 7,649 lm |
| Efficacy | 114.2 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 67W |
Dimensions
Weight: 13.5 lbs
Technical Specifications
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-UZ406N
DLC Product Code: S-UZ406N
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.97% at 480V
Power Factor
93.6% at 480V
Recently Viewed Products
NDLED6SD-WYY-W-W
Recessed Downlights 20 Lumens Ndled6Sd 6 Inch Square Universal Dimming Wall Washer Beam Spread 2700K 80Cri White Cone White Trim
TSLED4-36N/D10/US/BL
Stairwell 4680 Lumens Tsled4 4 Feet 36W 0-10V Dimmingabi-Levele 120V-277V 4000K Ultrasonic Sensor And Bi-Level Operation
RTLED1X4-29NW/D10/MVS
Panels & Troffers 3991 Lumens Rtled 1X4 29W 4000K 80Cri 0-10V Dimming Microwave Sensor
EZPANHE2X2-23N/D10/LC
Panels & Troffers 3227 Lumens Ezpan 2X2 23W 4000K 0-10V Dimming 120V-277V Lightcloud Controller
NDLED6SD-WYY-W-W
Recessed Downlights 20 Lumens Ndled6Sd 6 Inch Square Universal Dimming Wall Washer Beam Spread 2700K 80Cri White Cone White Trim
TSLED4-36N/D10/US/BL
Stairwell 4680 Lumens Tsled4 4 Feet 36W 0-10V Dimmingabi-Levele 120V-277V 4000K Ultrasonic Sensor And Bi-Level Operation

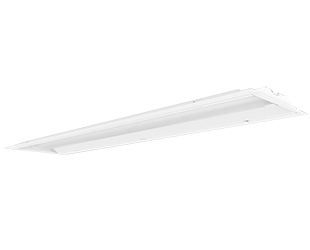

RTLED1X4-29NW/D10/MVS
