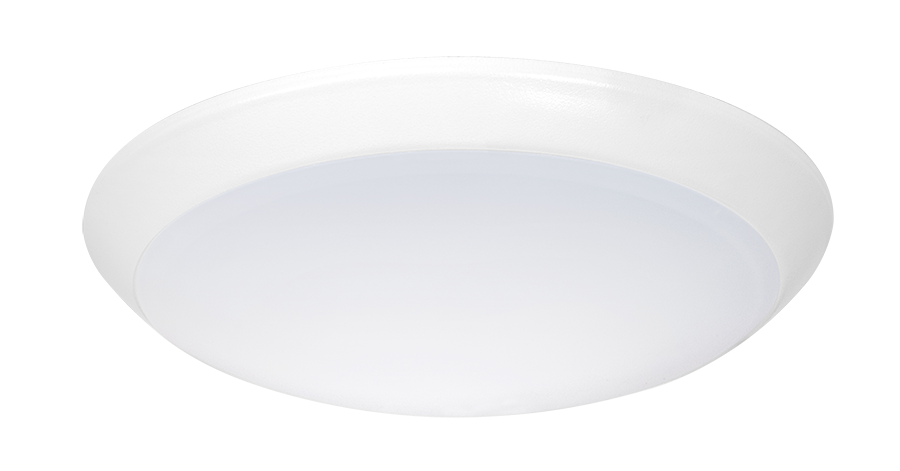

KLED6R12YYHC
KLED6R12YYHC
- Quick installation, no housing required
- Reduces energy costs by up to 80%
- TRIAC and ELV dimmable driver
- 5-Year, No-Compromise Warranty
Performance
| Watts | 12W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | 943 lm |
| Efficacy | 77.9 lm/W |
| Color Accuracy | 91 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.11A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 12.1W |

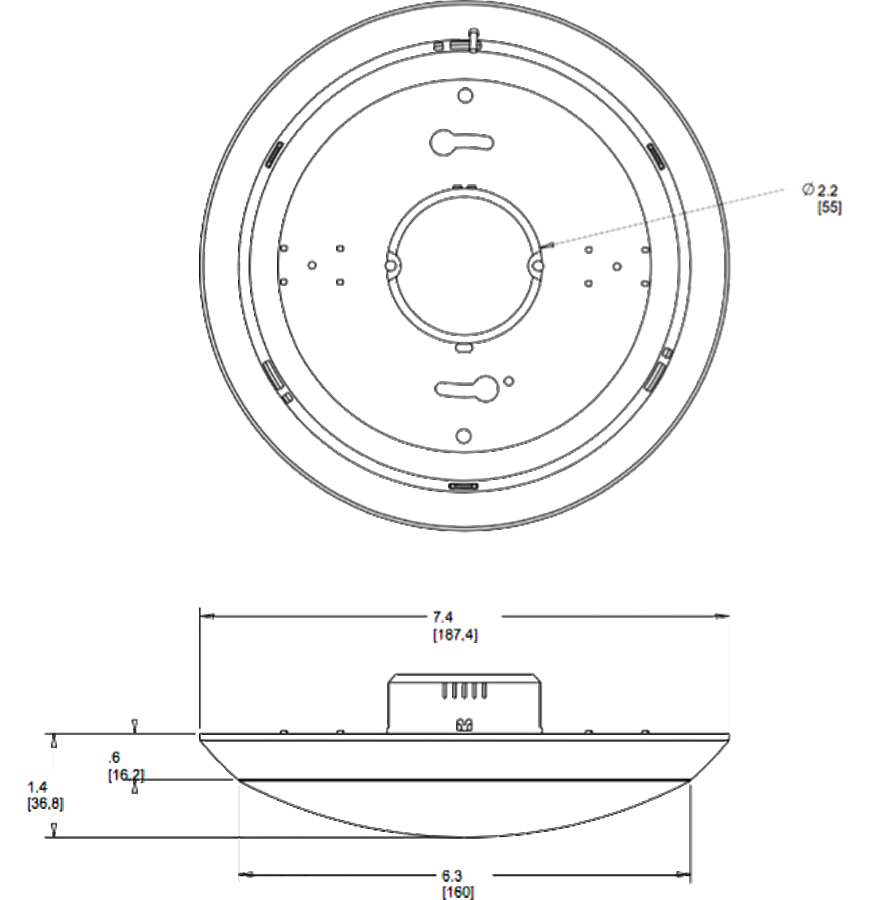

Dimensions
Weight: 0.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations. For indoor use only.
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 60W Incandescent
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 120V: 0.11A
Dimming Driver
Compatible with ELV and TRIAC dimming at 120V.

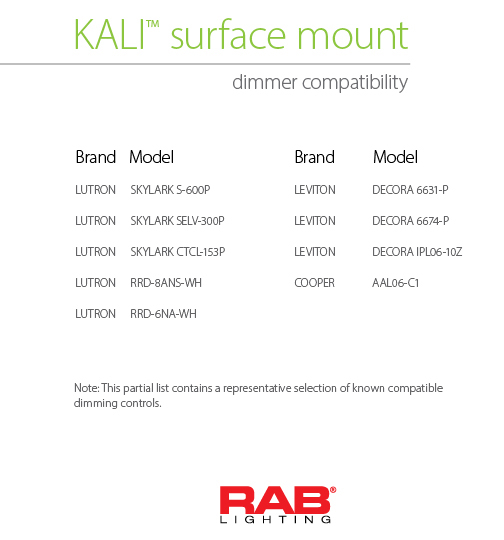

See dimmer compatibility guide here.
See dimmer compatibility guide here.
THD
21.1% at 120V
Power Factor
97.1% at 120V
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Post-painted, die formed aluminum
Lens
Toolless, twist-and-lock polycarbonate diffusion lens
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Chip and fade-resistant polyester powder coat finish
Installation
Mounting
Mounts to the following junction boxes with mounting screws 3 1/2" on center: 4" octagonal, 2 1/8" deep; 4" round, 2 1/8" deep; 3 1/2" round new construction, 2 3/4" deep; 3 1/2" round remodeler, 2 5/8" deep
Recently Viewed Products
ALED2T125W/D10/PCT
Arealights 15882 Lumens Aled Type Ii 8In Pole Arm 5K 125W 120V-277V 0-10V Dimming Twistlock Photocell White
PAR38FA-19-9CCT-40D-DIM
Pars 1500 Lumens Par38 Field Adjustable 19W 90Cri 3000/3500/4000/5000K 40 Degree Beam Spread Dimmable
IVAT4-100LWM730WH/WS2
Area Lights 10078 Lumens Ivat4 Type Iv 94W Wall Mount 70Cri 3000K White 347-480V 0-10V Dimming 20 Feet Lens Wattstopper Sensor
HALVS10L940-GL-W
Architectural 255 Lumens Halvs Forward & Up/Down Light 14W 90Cri 4000K Green Leaves Lens White Finish

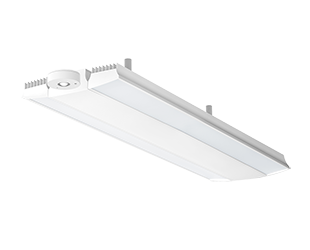

RAILP400NW/D10/LCS
