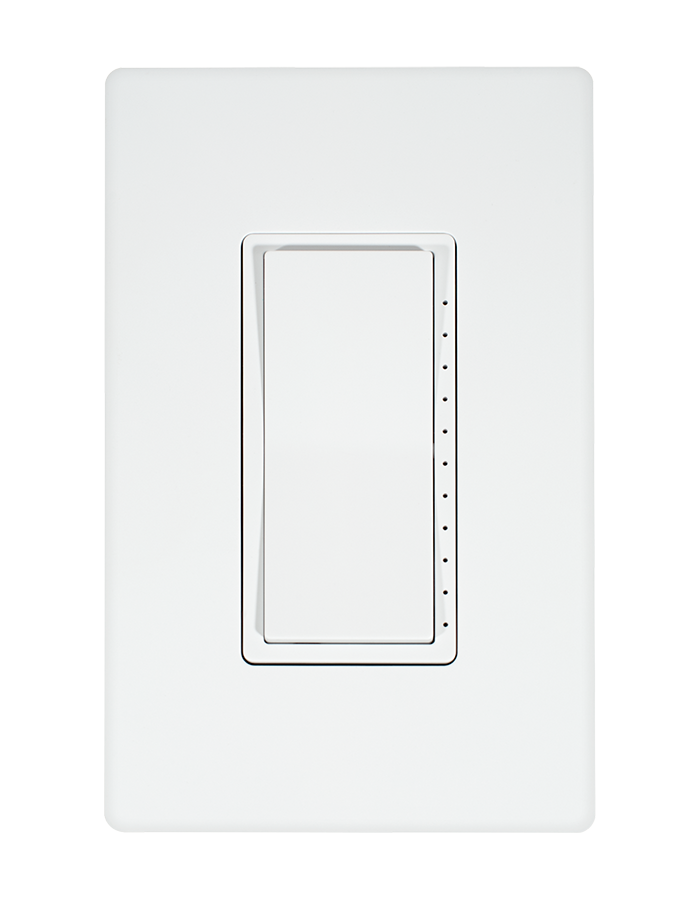

LCDIMMERW
LCDIMMERW
- In-wall device for switching, dimming and scene control
- Switch and dim individual fixtures or entire zones
- Dimming features both fade on/off and rapid full-on
- Assign scenes to top and/or bottom buttons
- Set the max trim level for a zone or fixture to save energy
- Use together with Lightcloud Controller or Sensor devices

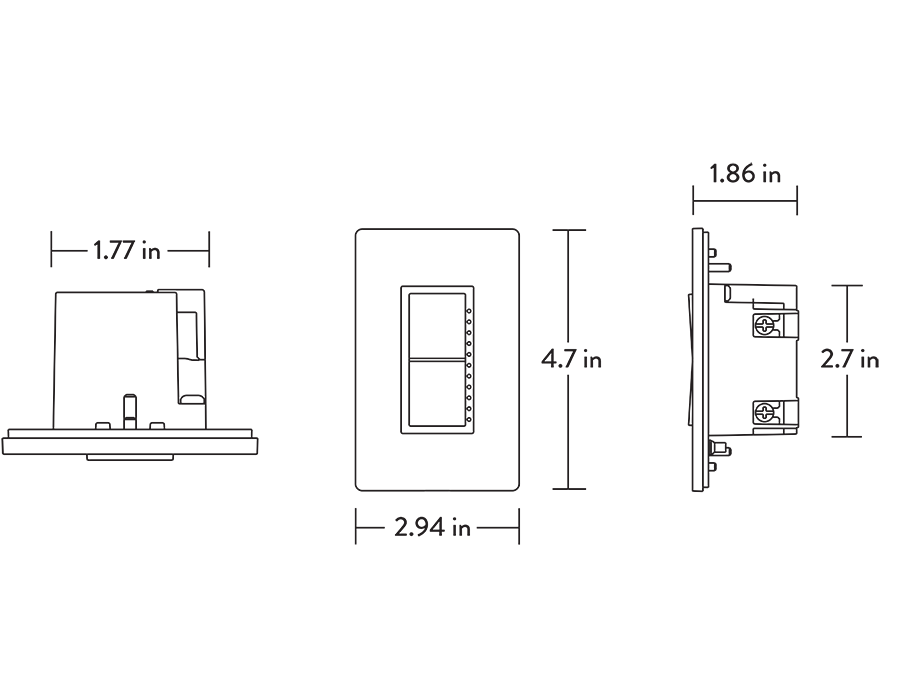

Dimensions
Weight: 0.4 lbs
Technical Specifications
Compliance
UL Listed
Indoor use only
Electrical
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input Voltage
120V through 277V
Frequencies
50/60 Hz
Electrical Ratings
14 mA @ 120VAC
10 mA @ 277VAC
10 mA @ 277VAC
Storage Temperature Range
-40°F to 185°F (-40°C to 85°C)
Construction
Operating Temperature Range
0°C to 40°C
Maximum Relative Humidity
85%
Wire Gauge
18AWG grounding; terminals supporting up to 12AWG wire
Wireless Range
Line of Sight
1000 ft
Obstructions
100 ft
Other
Warranty
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
