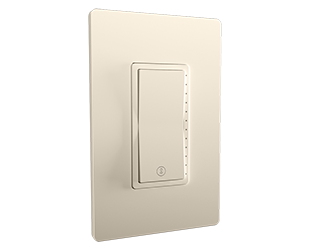

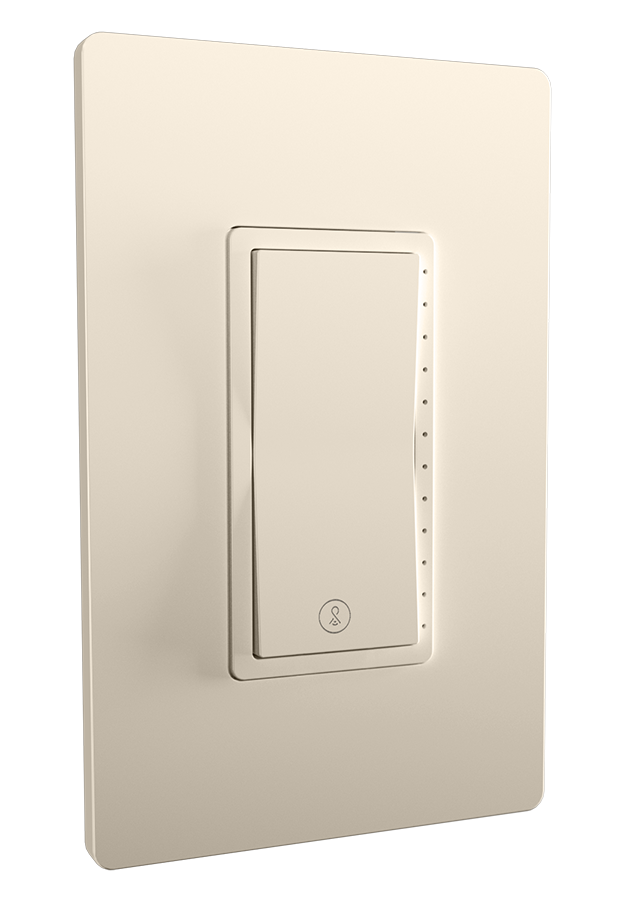

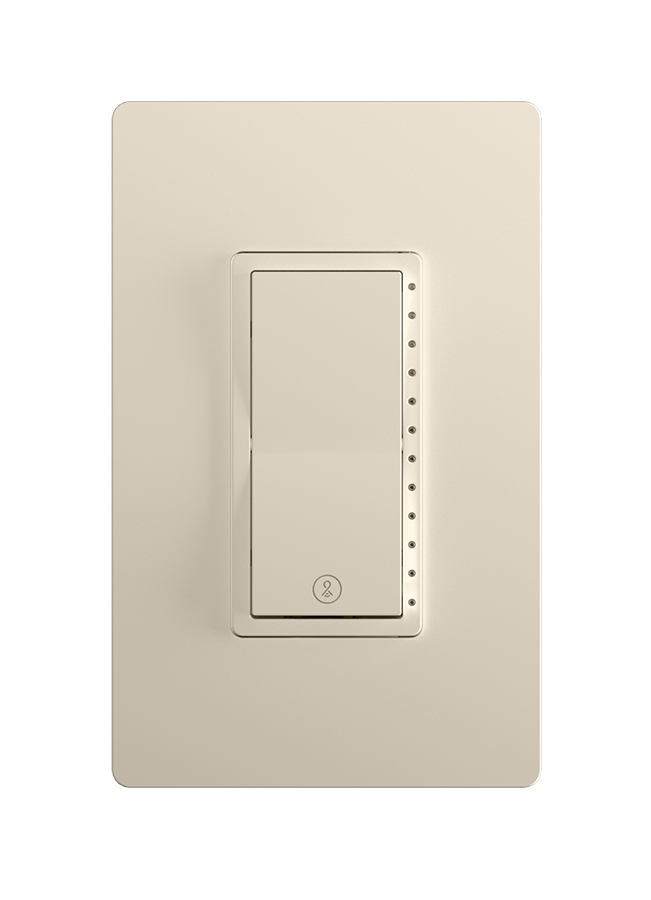

LCHUB/LAL
LCHUB/LAL
- Wireless mesh control for up to 30 Lightcloud devices
- Area-based controls architecture that automatically programs the system based on the devices in each Area
- Each Hub supports up to 30 Areas
- Unlimited Hubs can be used at each location
- Sensors in each Area are automatically grouped for Area-wide control
- Manually control the system from Dimmers, Touches, or the phone App (iOS or Android)
- Schedules (Schedule On, Off, Dimming, or CCT)
- Local dimming from toggle-button for up to 30 devices
- Compatible with all Lightcloud Controllers, Sensors, Lamps, and Fixtures
- Bluetooth (BLE) and iOS or Android App required
- WiFi required for schedules and firmware updates

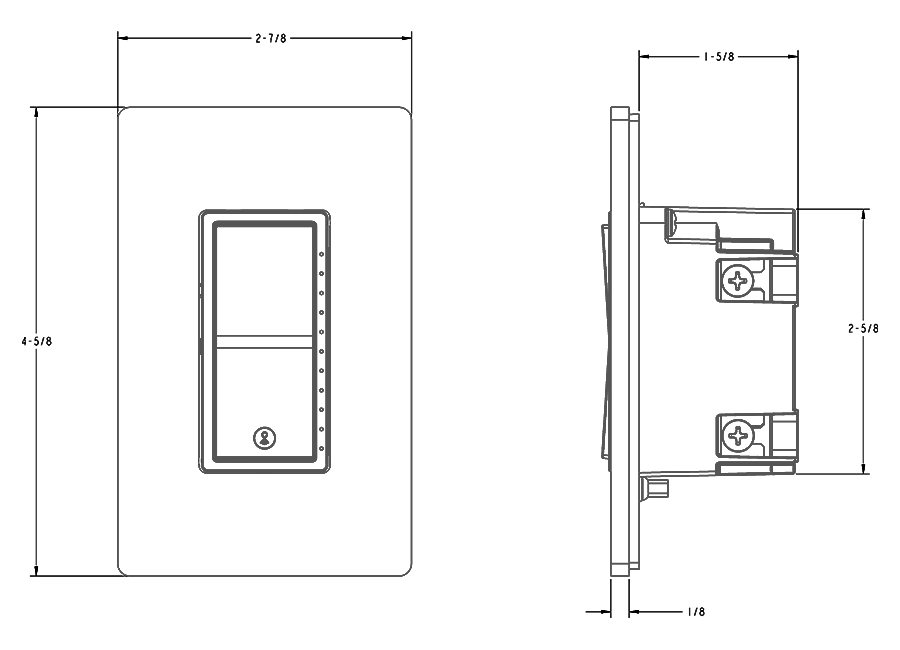

Dimensions
Weight: 0.3 lbs
Technical Specifications
Compliance
UL Listed
Indoor use only
Electrical
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input Voltage
120-277VAC
Frequencies
50/60 Hz
Electrical Ratings
14 mA @ 120VAC
10 mA @ 277VAC
10 mA @ 277VAC
Storage Temperature Range
-40°F to 185°F (-40°C to 85°C)
Construction
Operating Temperature Range
0°C to 40°C
Maximum Relative Humidity
85%
Wire Gauge
18AWG grounding; terminals supporting up to 12AWG wire
Wireless Range
Line of Sight
200 ft
Obstructions
100 ft
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
