LCLCSENSE/P/EG/A/2
LCLCSENSE/P/EG/A/2
- Motion detector and daylight sensor
- Compatible with Lightcloud Blue Controllers and fixtures, see compatibility list
- Direct Connect to the Lightcloud Blue mobile app via Bluetooth Mesh, no Gateway or Hub required
- Use mobile device to configure sensor settings for sensitivity, timeout and actions
- Choose sensing options between occupancy, vacancy or disable the sensor
Dimensions
Technical Specifications
Performance
Product Type
Wired Sensor
Description

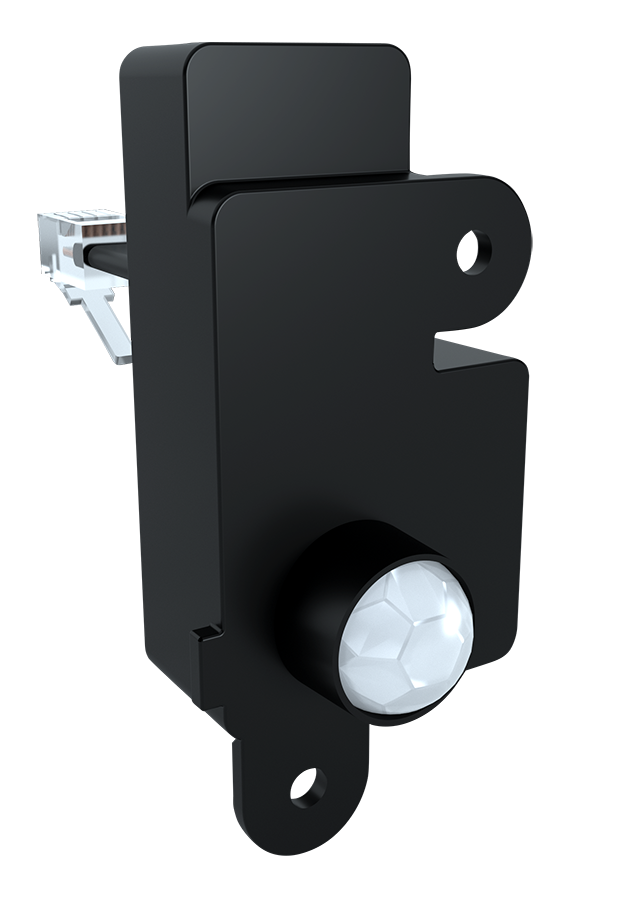

Passive Infrared motion detector and daylight sensor that can switch and dim both local and remote circuits. For use with compatible Lightcloud Blue Controllers and fixtures.
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Up to 60 ft between standard building materials. Up to 200 ft clear line of sight.
