LCSHUNT
LCSHUNT
- LED compatible
- 20A Rated N/O & N/C
- Used for bypassing line voltage switching, occupancy sensors or dimmers
- Also used as dry contact to signal relay panels or BMS systems of utility power interruption

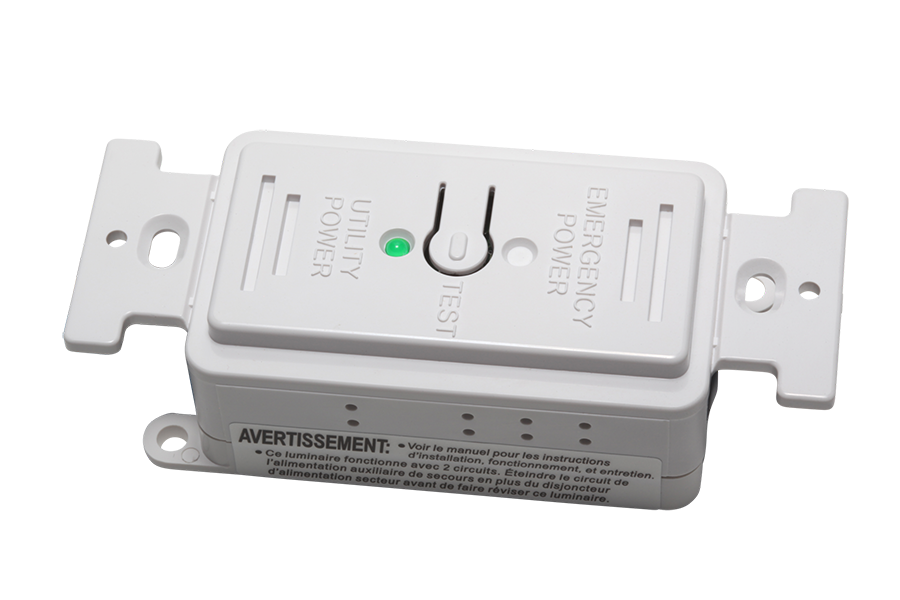

- Integral test switch and green utility power indicator
- UL924 Listed
Technical Specifications
Compliance
UL Listed
UL924 Listed
Electrical
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Sensing Input
120V - 277V
Load Rating
120V - 277V (20A)
Ballast Load Rating
20A (120V - 277V)
Incandescent Load
1800W (120V) / 1500W (277V)
Load
Contact #1 20A (120V-277V)
Installation
Mounting
Universal (flush, panel, fixture or junction box mount)
Construction
Rating
UL94V-0A
Shipping Weight
12 oz
Temperature
32°F - 140°F (0°C - 60°C)
Size
1.7" x 3" x 1.2" (W x H x D body)
Other
Warranty
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
