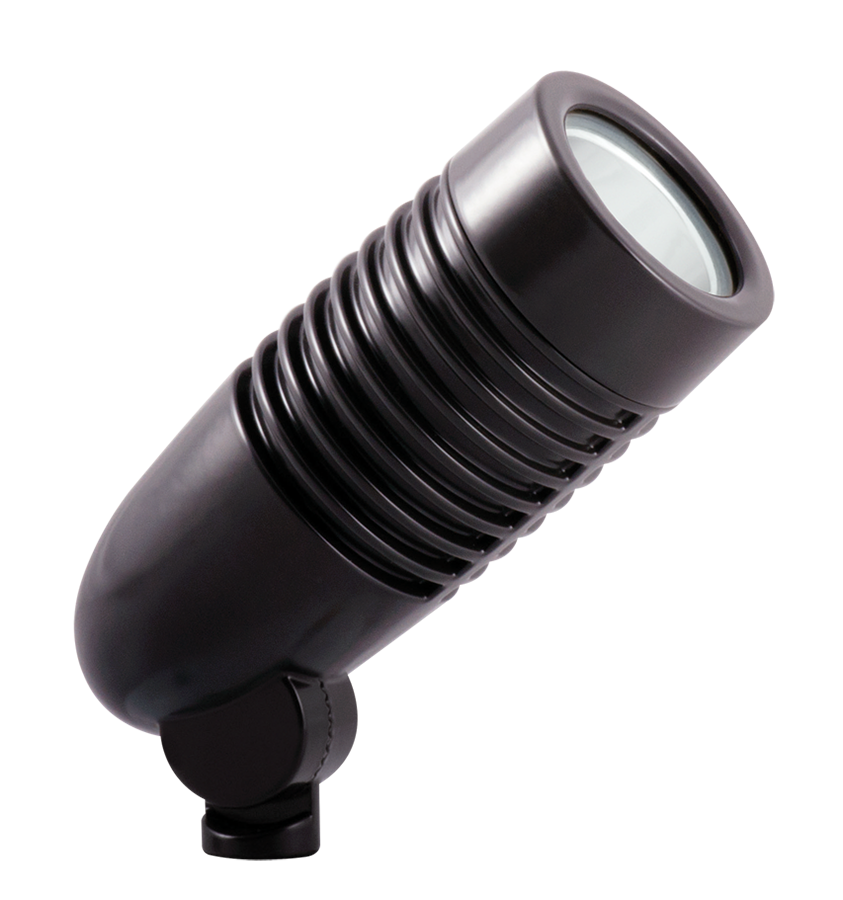

LFLED8NA

Microprismatic diffuser produces a smooth distribution and low glare

4H x 4V NEMA beam spread

Optional spot and narrow spot hood reflectors available

Runs cool; prevents burning foliage or fingers

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	8W
Color Temp	4000K (Neutral)
Lumens	469 lm
Efficacy	65.1 lm/W
Color Accuracy	82 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.14A
208V	0.09A
240V	0.08A
277V
Input Watts	7.2W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.6 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for ground mounting.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

LED

High-output, long-life LED

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Optical

Spot Lens

Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch. Spot reflector kit available here.

Narrow Spot Lens

Optional narrow spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch. Narrow spot reflector kit available here.

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Suitable for use in up to 104°F (40°C)

Thermal Management

Optimized using computational fluid dynamics so ftware to ensure long LED and driver lifespan

Housing

Precision die-cast aluminum, lens frame and mounting arm

Lens

Microprismatic diffuser produces a smooth distribution and low glare

Gaskets

High-temperature silicone

Finish

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Patents

The design of the LFLED is protected by Taiwan Patent 01510966 and pending patents in US, Canada, China, and Mexico

Electrical

Driver

Constant Current, Class 2, 50/60 Hz, 100-240VAC: 0.20Amps
