LL2LED6LVYYD
LL2LED6LVYYD
- Compatible with 12VAC systems
- Includes 8" ground spike
- 100,000-Hour lifespan
Performance
| Watts | 6W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | 204 lm |
| Efficacy | 35.2 lm/W |
| Color Accuracy | 81 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 5.8W |

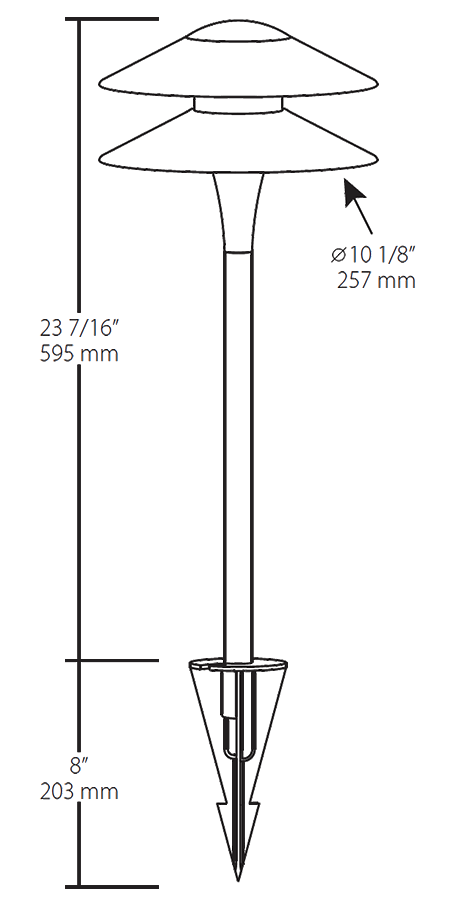

Dimensions
Weight: 5.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Electrical
System Transformer
No driver needed. Multi-tap magnetic transformer with 60 Hz only (sold separately). 054A.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -30°C/-34°F
Housing
Precision die-cast aluminum housing
Lens
Clear polycarbonate lens
Green Technology
Mercury and UV free. RoHS-compliant components.
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
18" stem with 1/2" NPS thread on both ends. Mounts to sturdy plastic pike to ground mount (included).
