LOT2T160/480/D10/7PR

Spec Sheet Instructions Spec Sheet

DISCONTINUED

Lightweight design and low EPA minimize pole load

Best-in-class 5-G vibration rating

100,000-hour LED lifespan

View Technical Specs

Performance

Watts	160W
Color Temp	5000K (Cool)
Lumens	20,155 lm
Efficacy	131.2 lm/W
Color Accuracy	76 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	153.6W

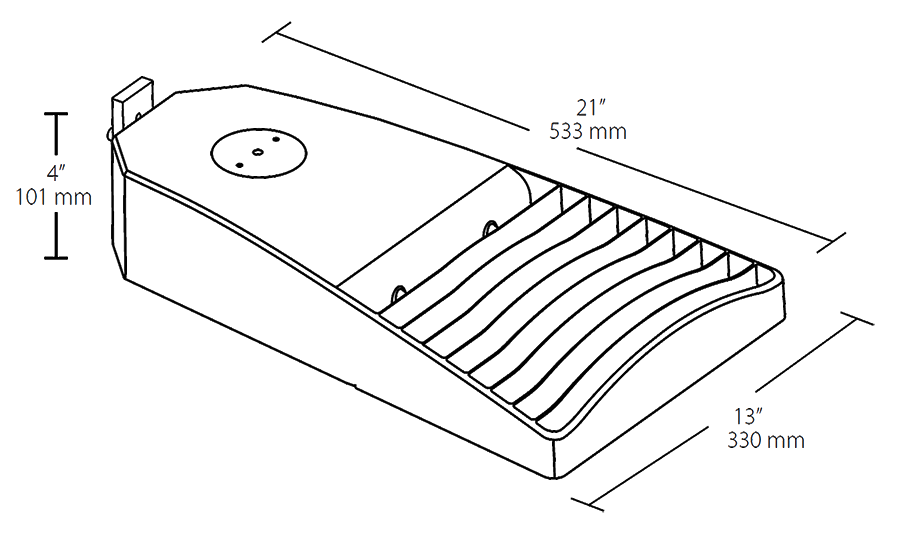

Dimensions

Weight: 20.9 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PE9KXMC5

Electrical

Driver

Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.33A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

7.34% at 480V

Power Factor

98.8% at 480V

7-Pin Receptacle

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

Surge Protection

L-N 4 kV; L-Earth 6 kV

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Optical

IES Classification

The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.
