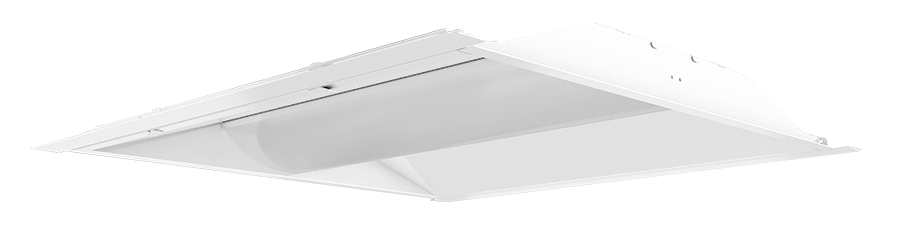

RTLED2X2-19NW/D10/MVS
RTLED2X2-19NW/D10/MVS
- Troffer Retrofit can be installed in under 3 minutes by 1 person
- Frosted polycarbonate lens provides a uniform distribution and reduces glare
- 0-10V dimming, standard
- 5-Year, No-Compromise Warranty
Performance
| Watts | 19W |
| Color Temp | 4000K (Neutral) |
| Lumens | 2,507 lm |
| Efficacy | 131.3 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.16A |
| 208V | 0.10A |
| 240V | 0.09A |
| 277V | 0.08A |
| Input Watts | 19.1W |

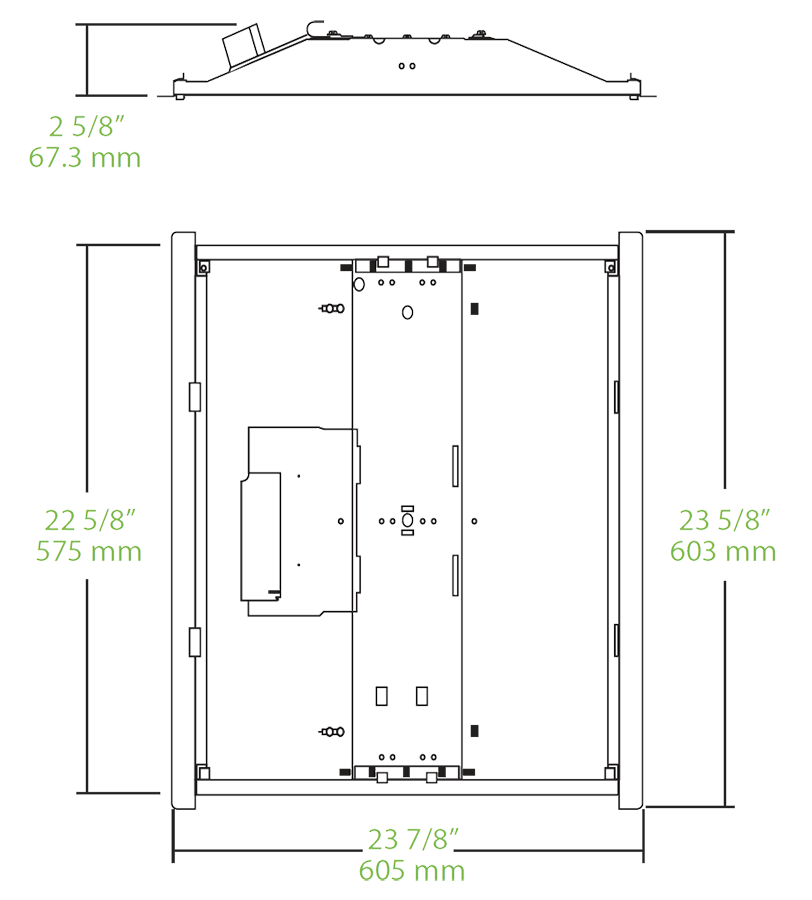

Dimensions
Weight: 12.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.16A, 0.10A, 0.09A, 0.08A
THD
11.5% at 120V, 13.6% at 277V
Power Factor
98.7% at 120V, 89.3% at 277V
Surge Protection
4 kV
Construction
Housing
Steel sheet metal
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Reflector
High-reflectance, powder-coated finish, optimized for uniform light distribution
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed ceiling
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to (2) F17T8 or (2) F24T5
Sensor Settings
Capacitance Load
400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC
Operating Temperature
-4°F to +140°F(-20°C to +60°C )
Relay
Zero-cross relay
Maximum Mounting Height
16.4 ft
Customizable Detection Area
10, 50, 75 or 100%
Time Delay
5s, 30s, 1min, 5min, 10min, 20min, 30min
Cut Off Period
0s, 10s, 1min, 5min, 10min, 30min, 1hr, Bi-Level
Cut-Off Dimming level
10, 20, 30, 50%
Cut-Off Power
Less than 1W
Daylight Threshold
About .2-5 fc for disabled
Sensor Principle
High Frequency
Microwave Frequency
5.8GHz +/- 75MHz
Microwave Power
<0.2mW
Max Detection Range
26 ft diameter at 16 ft mounting height
Detection Angle
About 30 to 150 degrees
Remote Control Accessory
Adjust settings using remote control (catalog# MVSREM). Only available with 0-10V dimming driver options. Remote control available here.
