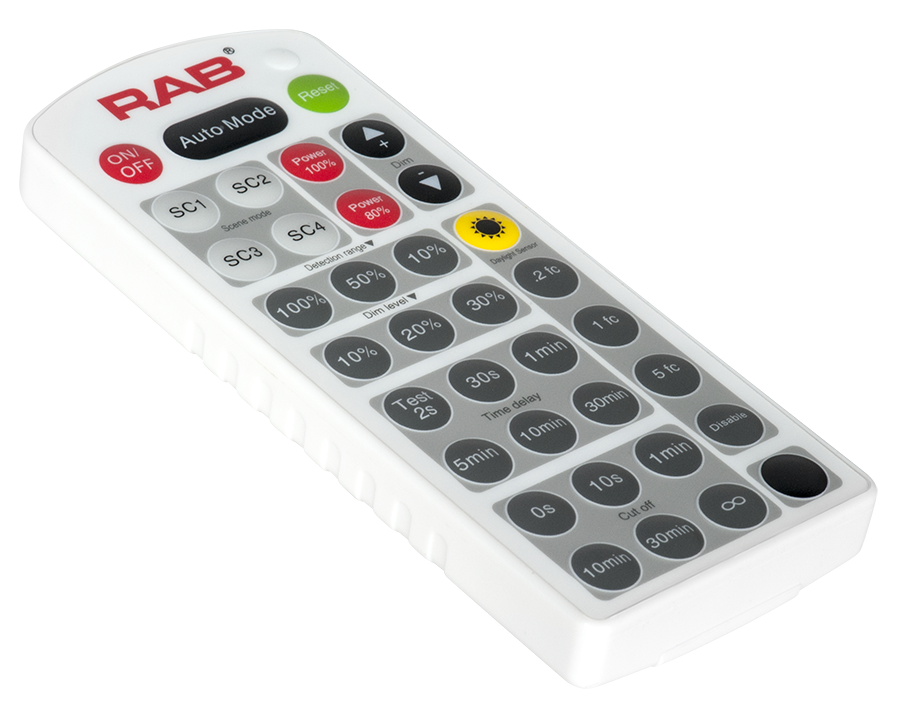

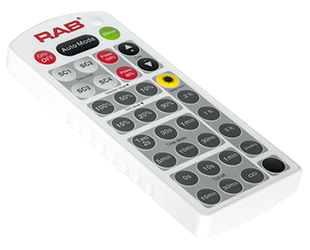

MVSREM
Technical Specifications
Remote Specifications
On/Off
Disables sensor; light is permanently* on or off. *un-do permanent on/off by selecting either Auto-Mode, RESET, or any Scene mode button.
Auto Mode
Sensor acticates and all previously selected settings remain programmed
RESET
Overrides selected settings; reverts to DIP settings
Dim Buttons
"+" dims up and "-" dims down, adjusting lamp brightness
Test 2s
Automatic* test mode with 2 second time delay; disables cut off period and daylight sensor. *Un-do automatic test mode by selecting either RESET, any Scene mode button, or hold time.
Power 100% & Power 80%
Adjusts power output; to save energy select Power 80%. Must return to full output after initial 10,000 hours of LEDs by pressing Power 100%.
Detection Range Button Group
Assigns the detection range of 10, 50 or 100%. To limit area in which motion will set off sensor, use a smaller percent. The sensor will not detect motion outside of 100% and the fixture will not light.
Time Delay Button Group
Assigns hold time of 30 seconds, 1 minute, 5 minutes, 10 minutes, or 30 minutes
Cut Off Button Group
Assigns cut off period of 0 seconds, 10 seconds, 1 minute, 10 minutes, 30 minutes, or 1 hour. 0 seconds gives fixture on/off control rather than dimmingKeeps the light on always (if daylight sensor is disabled)
with Bi-Level dimming control.
Dim Level
Assigns level of 10, 20, or 30% for dimmed light output after time delay passes
