LOT2T65NW/D10/7PR
DISCONTINUED
LOT2T65NW/D10/7PR
- Lightweight design and low EPA minimize pole load
- Best-in-class 5-G vibration rating
- 100,000-hour LED lifespan
Performance
| Watts | 65W |
| Color Temp | 4000K (Neutral) |
| Lumens | 8,359 lm |
| Efficacy | 138.9 lm/W |
| Color Accuracy | 73 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.55A |
| 208V | 0.33A |
| 240V | 0.29A |
| 277V | 0.25A |
| Input Watts | 60.2W |
Dimensions
Weight: 20.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P87TRA9Z
DLC Product Code: P87TRA9Z
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.55A, 208V: 0.33A, 240V: 0.29A, 277V: 0.55A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.19% at 120V, 6.98% at 277V
Power Factor
99.8% at 120V, 94.1% at 277V
7-Pin Receptacle
ANSI C136.41 7-pin receptacle, compatible with wireless control systems
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.
Construction
Effective Projected Area
EPA = 0.8
Recently Viewed Products
LOT2T65NW/D10/7PR
Area Lights 8359 Lumens Lotblaster 65W 4000K Type Ii 0-10V Dimming 120V-277V 7-Pin Receptacle White
R6R14835120WS
Retrofit Downlights 1501 Lumens Retrofit Downlight 14W 6 Inches Round 80Cri 3500K 120V White Smooth
HALV10L940-LH-W/LC/E2
Architectural 169 Lumens Halv Forward Light 14W 90Cri 4000K Linen Harbor Lens White Finish Lightcloud Controller Battery Backup

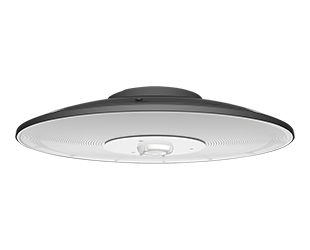

IVGT5-50L750ZU/WS2/E2
