LOT2T65W/480/D10/PCT4
DISCONTINUED
LOT2T65W/480/D10/PCT4
- Lightweight design and low EPA minimize pole load
- Best-in-class 5-G vibration rating
- 100,000-hour LED lifespan
Performance
| Watts | 65W |
| Color Temp | 5000K (Cool) |
| Lumens | 7,994 lm |
| Efficacy | 132.1 lm/W |
| Color Accuracy | 76 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 60.5W |
Dimensions
Weight: 20.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.13A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.17% at 480V
Power Factor
98.1% at 480V
Photocell
480V Twistlock photocell included. Photocell is only compatible with 480V.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.
Construction
Effective Projected Area
EPA = 0.8
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Recently Viewed Products
LOT2T65W/480/D10/PCT4
Area Lights 7994 Lumens Lotblaster 65W Type Ii 0-10V Dimming 480V Twistlock Photocell White
CDLED2WD-10W-20D927-Z
Cylinders 699 Lumens Cdled 10W 2 Inches Wall Direct(Downlight) Only 90Cri 2700K Bronze

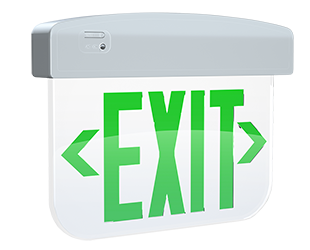

EXITEDGE34-1GW/E
