LOT3T110NW/480/D10/UPA/HS
LOT3T110NW/480/D10/UPA/HS large main
DISCONTINUED
  • Lightweight design and low EPA minimize pole load
  • Best-in-class 5-G vibration rating
  • 100,000-hour LED lifespan
 View Technical Specs
Performance
Watts 110W
Color Temp 4000K (Neutral)
Lumens 14,183 lm
Efficacy 144.6 lm/W
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 98.1W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P2X5JEPP
Electrical
Driver
Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.21A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.7% at 480V
Power Factor
99.2% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type III distribution is meant to be located near the side of an area, projecting the light outward to fill the area. Ideal for roadways, general parking areas, lighting applications and where a large pool of light is required.
Construction
Effective Projected Area
EPA = 0.8
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs

Recently Viewed Products

This is a link to the product LOT3T110NW/480/D10/UPA/HS LOT3T110NW/480/D10/UPA/HS
Area Lights 14183 Lumens Lotblaster 110W 4000K Type Iii 0-10V Dimming 480V Universal Pole Adapter House-Side-Shield White
This is a link to the product ALED3T50SFNK/D10/LC ALED3T50SFNK/D10/LC
Arealights 6333 Lumens Aled Type Iii Slipfitter 4K 50W 120V-277V 0-10V Dimming Lightcloud Controller Black
This is a link to the product ALED2T105SFNRG/WS4 ALED2T105SFNRG/WS4
Arealights 12528 Lumens Aled Type Ii Slipfitter 4K 105W 120V-277V Multi-Level Sensor With 40 Feet Lens Roadway Gray
This is a link to the product RDLED2AR8-30YHC-TLW RDLED2AR8-30YHC-TLW
Recessed Downlights 571 Lumens Rdled2Ar8 2 Inch Adjustable Round 8W 30 Degree Beam Spread 90Cri 3000K Trimless White Trim Ring
This is a link to the product NDLED4RD-50N-M-W NDLED4RD-50N-M-W
Recessed Downlights 12 Lumens Ndled4Rd 4 Inch Round Universal Dimming 50 Degree Beam Spread 4000K 80Cri Matte Silver Cone White Trim

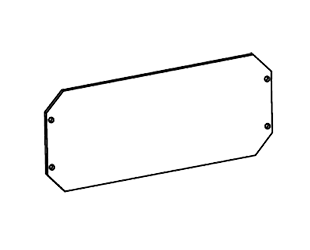

This is a link to the product GDFFLED39P GDFFLED39P
