LOT4T160YW/480/D10/UPA/HS
LOT4T160YW/480/D10/UPA/HS large main
DISCONTINUED
  • 100,000-hour LED lifespan
  • Type IV distribution
 View Technical Specs
Performance
Watts 160W
Color Temp 3000K (Warm)
Lumens 18,795 lm
Efficacy 124.4 lm/W
Color Accuracy 73 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 151.1W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PYS2NCKE
Electrical
Driver
Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.33A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.82% at 480V
Power Factor
98.8% at 480V
Surge Protection
L-N 4 kV; L-Earth 6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type IV distribution (also known as a Forward Throw) produces a semicircular distribute, and is especially suited for mounting on sides of buildings or walls and perimeter of parking areas
Construction
Effective Projected Area
EPA = 0.8

Recently Viewed Products

This is a link to the product LOT4T160YW/480/D10/UPA/HS LOT4T160YW/480/D10/UPA/HS
Area Lights 18795 Lumens Lotblaster 160W Type Iv 0-10V Dimming 480V Universal Pole Adapter House-Side-Shield White
This is a link to the product STL12LV STL12LV
Outdoor Sensors Stealth Low Voltage Sensor 96W 12V Bronze
This is a link to the product CDLED6WD-26W-80D927-Z CDLED6WD-26W-80D927-Z
Cylinders 2120 Lumens Cdled 26W 6 Inches Wall Direct(Downlight) Only 90Cri 2700K Bronze
This is a link to the product IVAT5S-100LPA750WU/WS/LC IVAT5S-100LPA750WU/WS/LC
Arealights 11577 Lumens Ivelot Type V Square 100W 10000L Pole 5000K Warm 70Cri White 120V-277V Dimmable Multi-Level Sensor With 10 Feet Lens Lightcloud

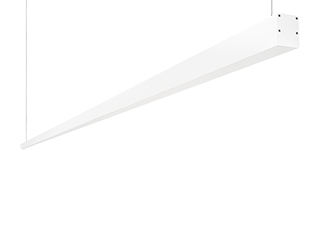

This is a link to the product BOA12P-120D10-40Y-W/LC BOA12P-120D10-40Y-W/LC
