LOT4T65YW/D10/UPA/HS
DISCONTINUED
LOT4T65YW/D10/UPA/HS
- 100,000-hour LED lifespan
- Type IV distribution
Performance
| Watts | 65W |
| Color Temp | 3000K (Warm) |
| Lumens | 7,684 lm |
| Efficacy | 123.9 lm/W |
| Color Accuracy | 73 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.55A |
| 208V | 0.33A |
| 240V | 0.29A |
| 277V | 0.25A |
| Input Watts | 62W |
Dimensions
Weight: 20.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.55A, 208V: 0.33A, 240V: 0.29A, 277V: 0.55A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.85% at 120V, 7.48% at 277V
Power Factor
99.7% at 120V, 94.3% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type IV distribution (also known as a Forward Throw) produces a semicircular distribute, and is especially suited for mounting on sides of buildings or walls and perimeter of parking areas
Construction
Effective Projected Area
EPA = 0.8
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Recently Viewed Products
BOA8P-40D10-40Y-B/E2
Architectural 2998 Lumens Boa 8 Ft 40W Pendant Mount 3000K 0-10V Dimming Battery Backup Matte Black
NDLED4RD-80YNHC-M-B
Recessed Downlights 12 Lumens Ndled4Rd 4 Inch Round Universal Dimming 80 Degree Beam Spread 3500K 90Cri Matte Silver Cone Black Trim
HALVS18L927-TL-W/LC/E2
Architectural 409 Lumens Halvs Forward & Up/Down Light 25W 90Cri 2700K Toffee Leaves Lens White Finish Lightcloud Controller Battery Backup
PRT80RW/LCB
Porto Field Adjustable 80/70/60W Round 3500/4000/5000K On/Off Photocell Lightcloud Blue White

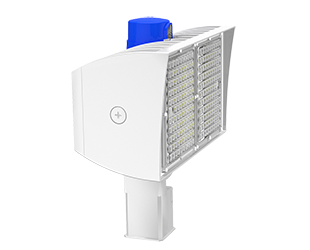

PIPXL100SFW/D10/PCT
