LOT5T110W/480/D10/UPA/5PR
LOT5T110W/480/D10/UPA/5PR large main
DISCONTINUED
  • Lightweight design and low EPA minimize pole load
  • Best-in-class 5-G vibration rating
  • 100,000-hour LED lifespan
 View Technical Specs
Performance
Watts 110W
Color Temp 5000K (Cool)
Lumens 14,699 lm
Efficacy 148.2 lm/W
Color Accuracy 76 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 99.2W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PN5WYA14
Electrical
Driver
Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.21A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.54% at 480V
Power Factor
98.2% at 480V
5-Pin Receptacle
ANSI C136.41 5-pin receptacle, compatible with wireless control systems
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
Type VS distributes light in a square symmetrical pattern and is meant for large, commercial parking lot lighting as well as areas where sufficient, evenly distributed light is necessary
Construction
Effective Projected Area
EPA = 0.8

Recently Viewed Products

This is a link to the product LOT5T110W/480/D10/UPA/5PR LOT5T110W/480/D10/UPA/5PR
Area Lights 14699 Lumens Lotblaster 110W Type V 0-10V Dimming 480V Universal Pole Adapter 5-Pin Receptacle White
This is a link to the product PIPXL100TY/D10 PIPXL100TY/D10
Flood 15358 Lumens Pip Xl 100W Warm Led 120V-277V 0-10V Dimming Lc Trunnion Bronze
This is a link to the product SLIM12/D10 SLIM12/D10
Wall Packs 1818 Lumens Slim 12W 5000K 0-10V Dimming Bronze
This is a link to the product ALED2T50N/480/WS4 ALED2T50N/480/WS4
Arealights 6837 Lumens Aled Type Ii 8In Pole Arm 4000K 50W 480V Multi-Level Sensor With 40 Feet Lens Bronze

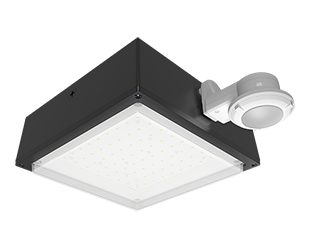

This is a link to the product VANLED52YFR/480/WS2 VANLED52YFR/480/WS2
Canopy Lights 6181 Lumens Vanled 52W 3000K 480V Frosted Lens 277V Wattstopper Sensor Bronze

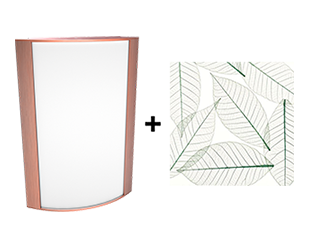

This is a link to the product HALV18L940-GL-CU/LC HALV18L940-GL-CU/LC
