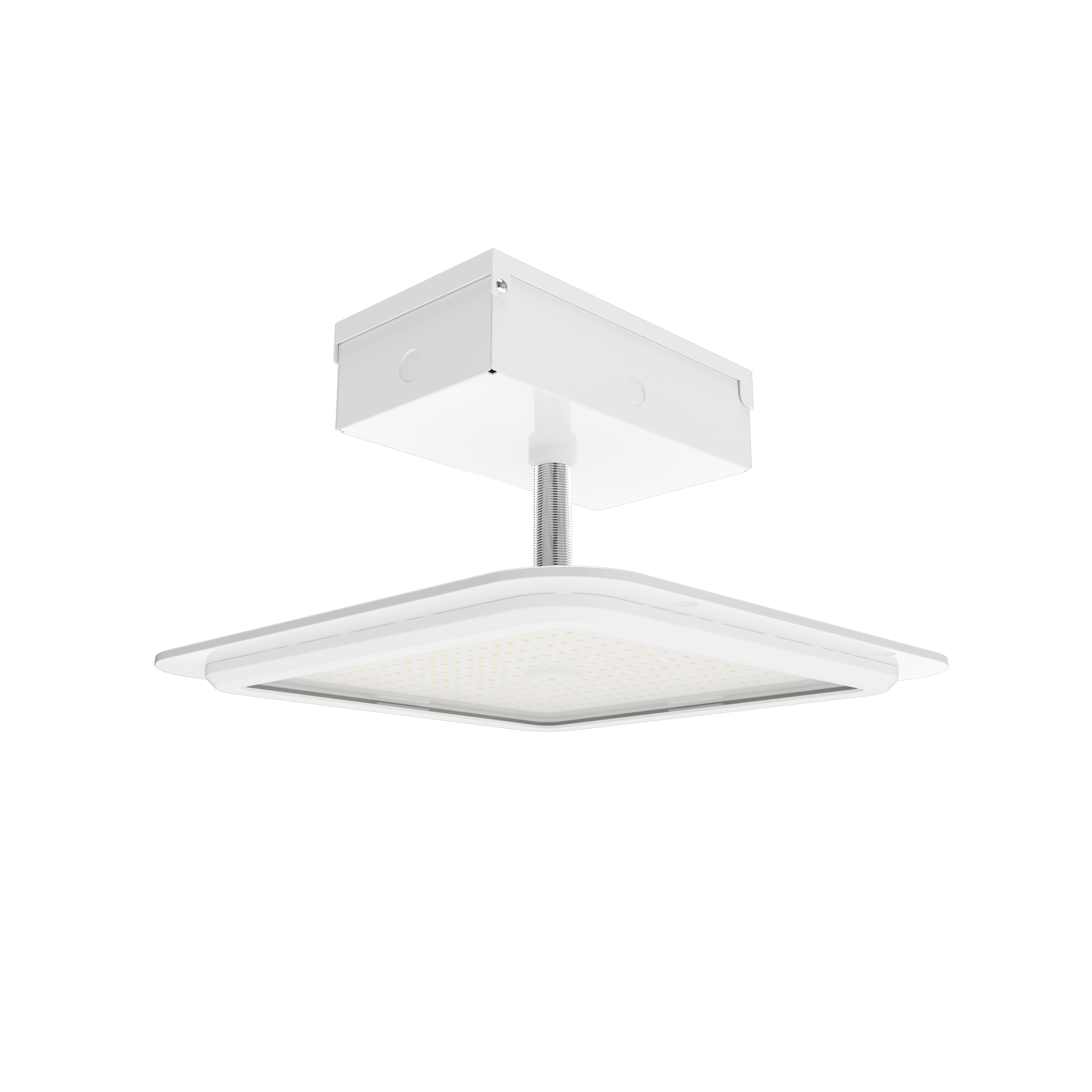

MASI16

150W 3000/4000/5000K

100,000-Hour LED lifespan

IP65 rating protects against dust and water

UL wet location rated

DLC Listed

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	150/120/100W
Color Temp	3000/4000/5000K
Lumens	15468-23442 lm
Efficacy	142.1-167.5 lm/W
Color Accuracy	81-83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	1.22A/0.98A/0.82A
208V	0.70A/0.57A/0.47A
240V	0.61A/0.49A/0.41A
277V	0.53A/0.44A/0.38A
Input Watts	98.3-151.2W

EZ-Layout

Create Custom Lighting Layout

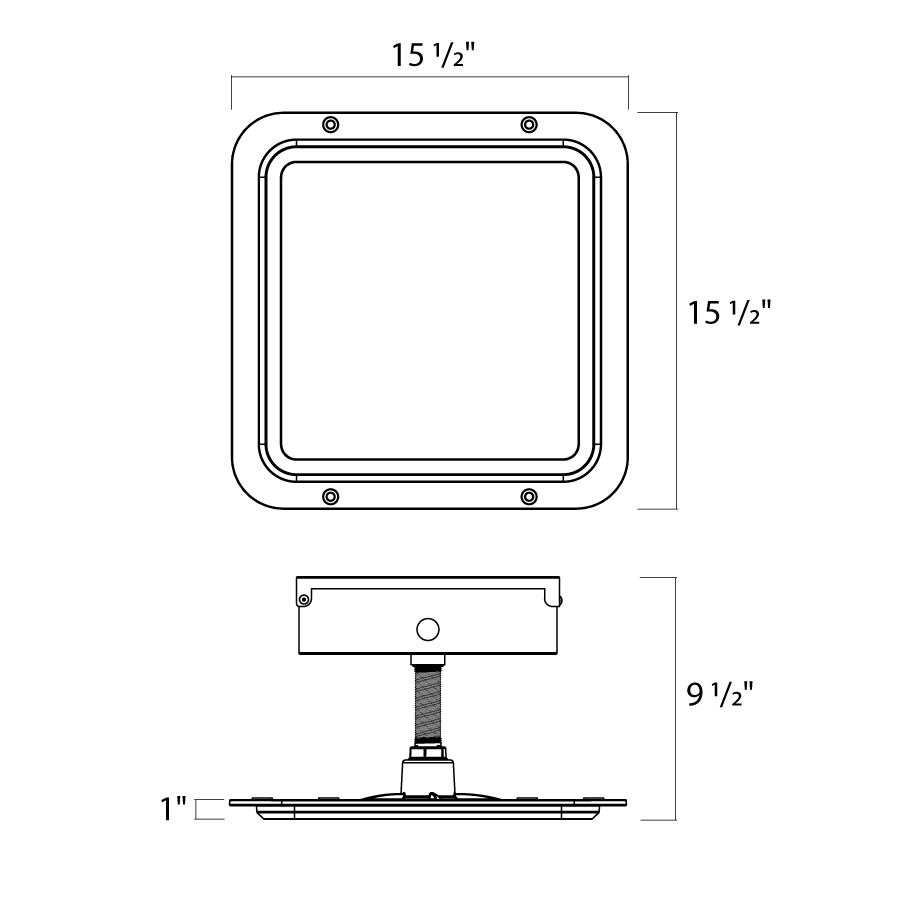

Dimensions

Weight: 12.3 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
150W/120W/100W (factory default 150W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP65 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Die-cast aluminum

Lens

Tempered glass

Gaskets

High-temperature silicone

Finish

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Vibration Rating

3G vibration rating per ANSI C136.31

Green Technology

Mercury and UV free. RoHS-compliant components.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

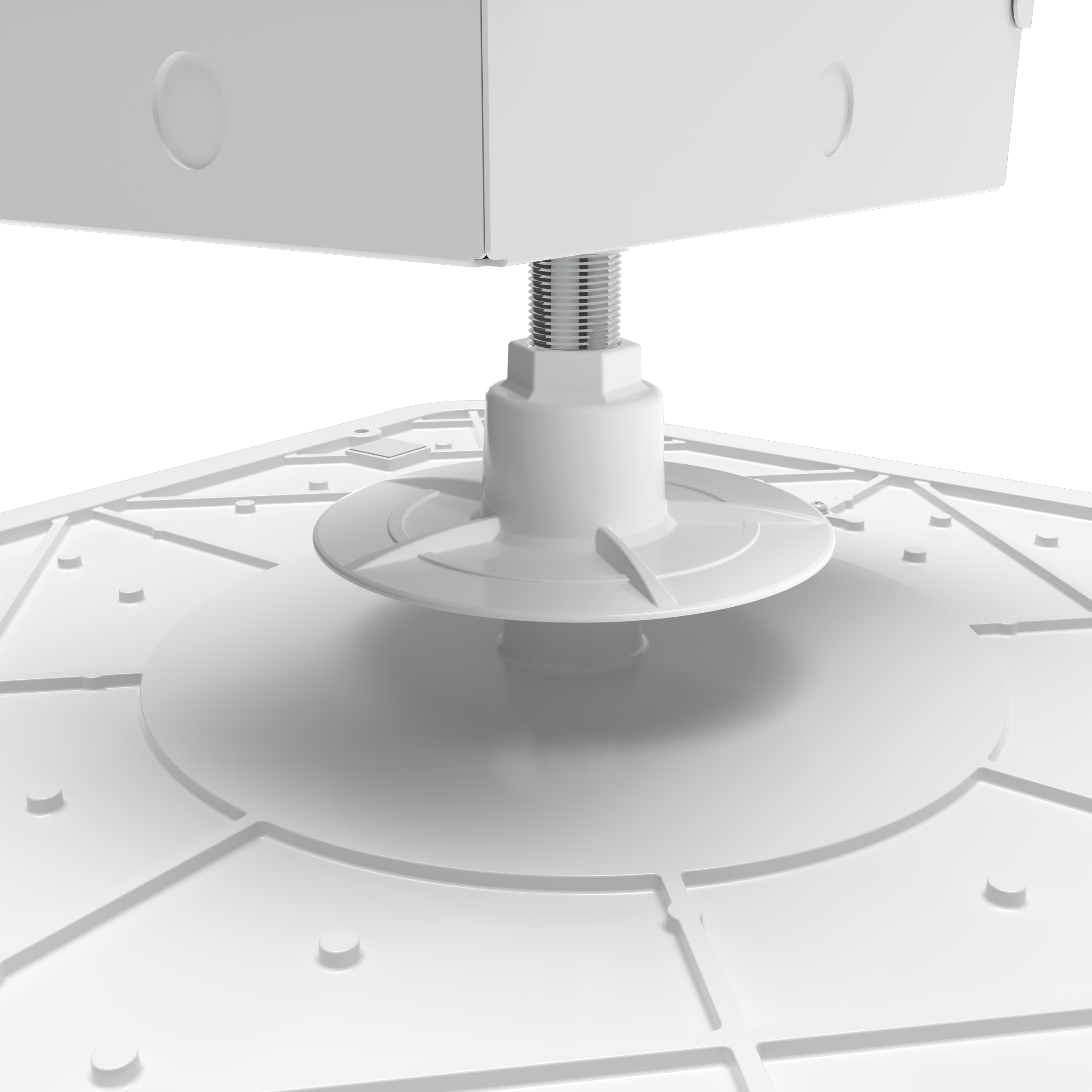

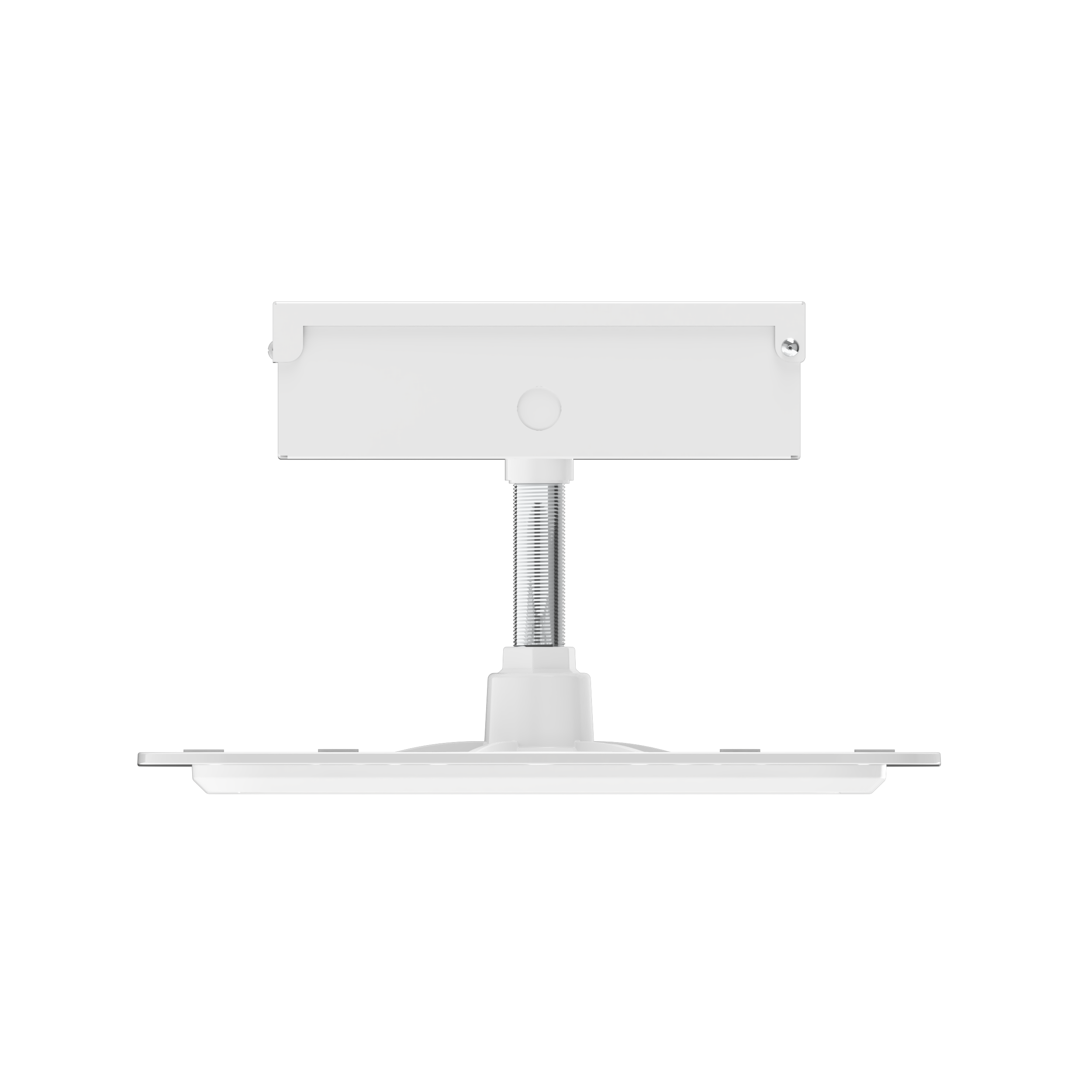

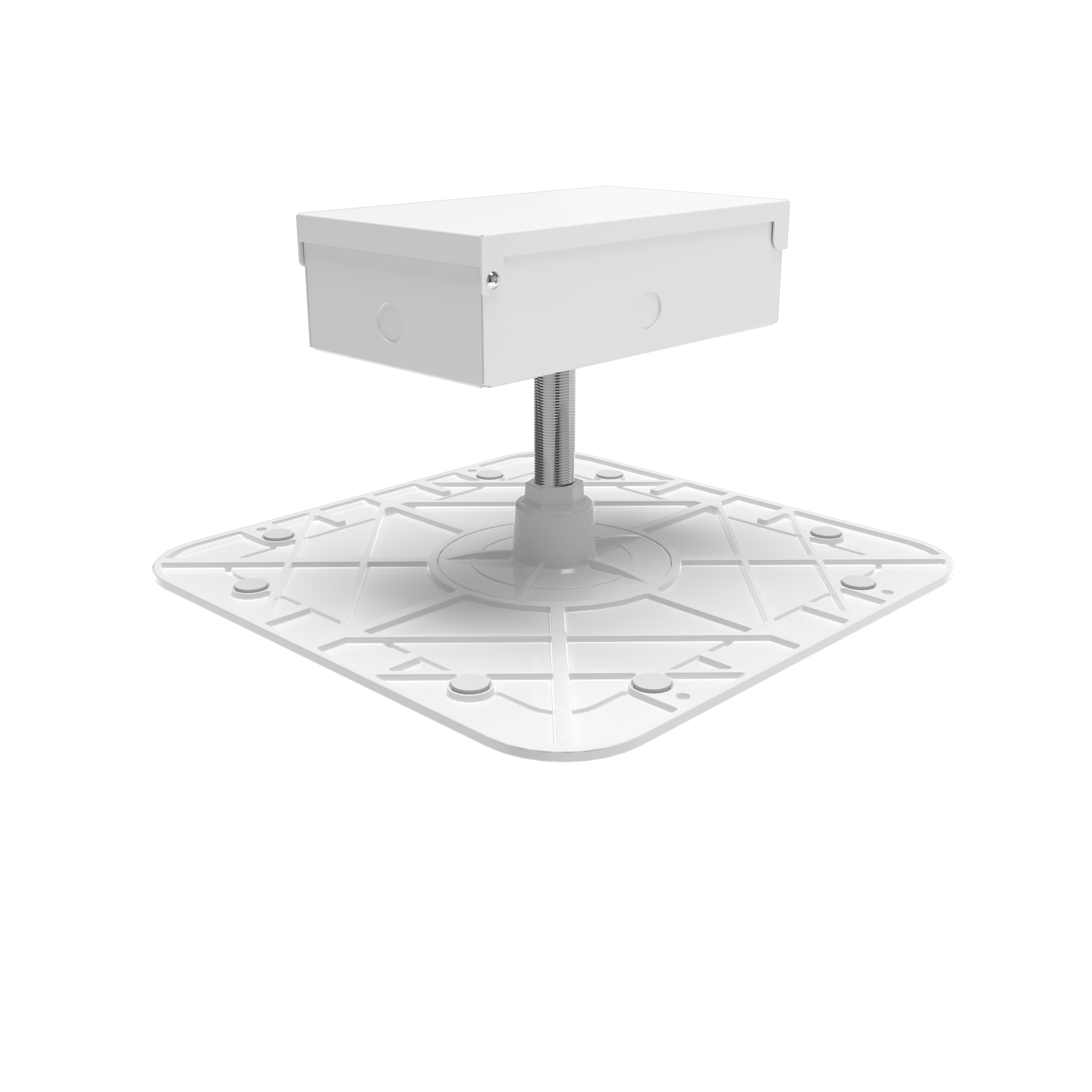

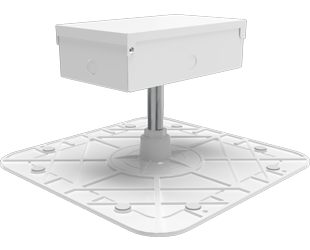

Semi-recessed construction. Junction box with four (4) 1/2" NPS conduit openings.

Optical

Bug Rating

B3-U0-G3

Electrical

Driver

Constant Current, Class 1, 120-277V 50/60 Hz:
150W: 120V: 1.22A, 208V: 0.70A, 240V: 0.61A, 277V: 0.53A
120W: 120V: 0.98A, 208V: 0.57A, 240V: 0.49A, 277V: 0.44A
100W: 120V: 0.82A, 208V: 0.47A, 240V: 0.41A, 277V: 0.38A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Aux Power Supply

Dim to Off

Yes

Surge Protection

L-N: 6kV; L/N-PE: 6kV

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
