• Adjustable clamps for quick, secure installation
  • Accommodates ceilings 1/2" - 2 1/2" thick
  • Butterfly bracket allows mounting with bar stock, "C" channel, 1/2" conduit or nailer bars
View Technical Specs
Dimensions

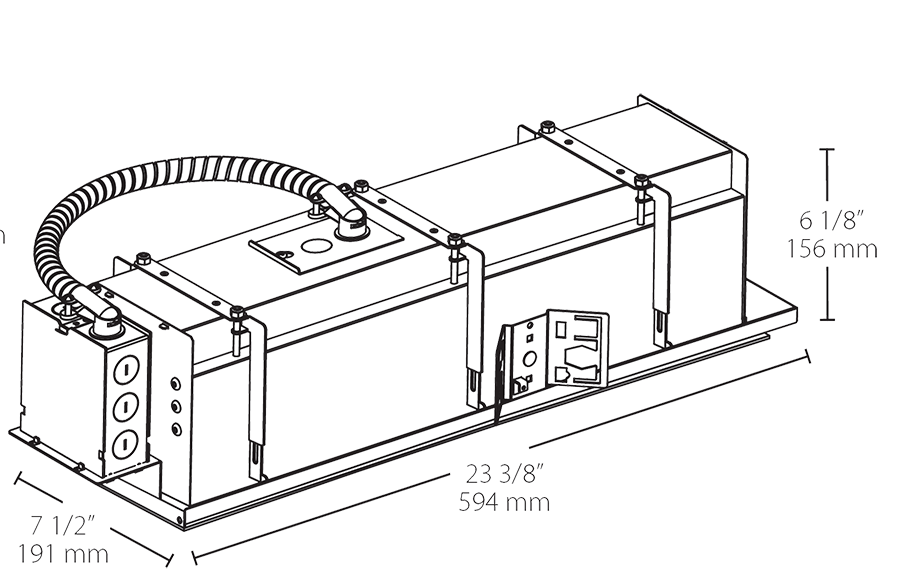

Link to Dimension Drawing

Weight: 14.1 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Construction
Housing Component
This component must be ordered with the Multi-Head gear tray in order to make a complete fixture. See here for Multi-Head gear tray.
Housing
Professional-grade, heavy-gauge steel construction with 1/2" trim and three adjustment heights for gear trays
Easy Installation
Ceiling clamps install quickly and hold housing securely. Clamp ceilings from 1/2" to 2 1/2" thick, with course and fine adjustments.
Trim
1/2" Trim
Installation
Mounting
Housing includes nailer bars and butterfly brackets. Brackets also accommodate mounting with 1/4" to 1/2" bar stock, C channel or 1/2" conduit.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
