NDTRIM3RW-B
NDTRIM3RW-B
- Durable die-cast aluminum
- High-efficiency TIR optics
- Optic and trim included
Performance
| Watts | |
| Color Temp | |
| Lumens | See Table Below* lm |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan | See Rough-In* Hours |
| Type | Sold Separately |
| 120V | See Rough-in* |
| 208V | See Rough-in* |
| 240V | See Rough-in* |
| 277V | See Rough-in* |
| Input Watts |

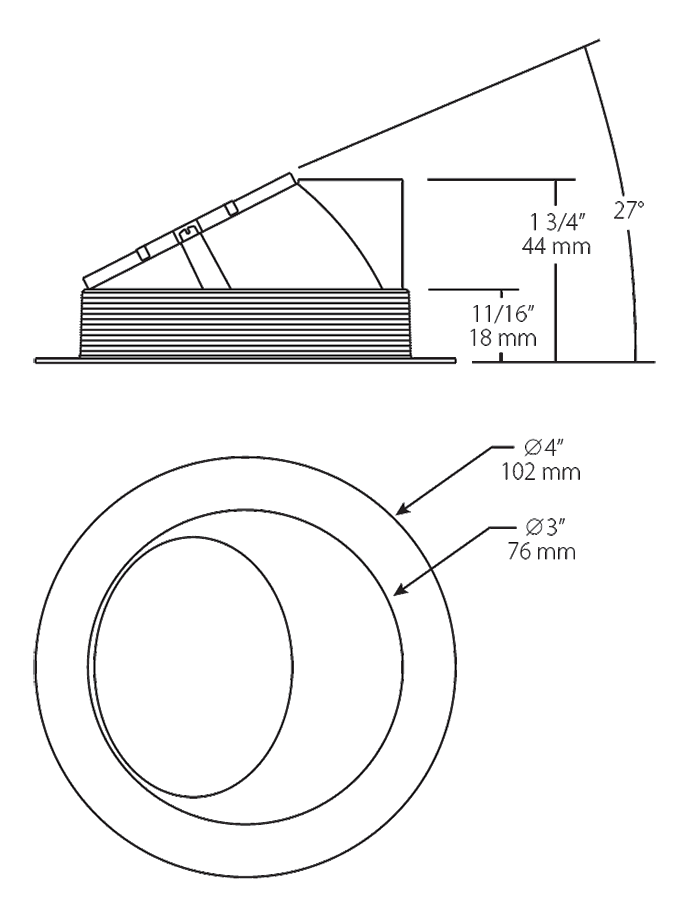

Dimensions
Weight: 0.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations in a covered ceiling
Optical
Optics
High-efficiency TIR optics available as a trimmed wall washer. Optic and trim cone included.
Construction
Trim Component
This component must be ordered with New Construction Rough-In in order to make a complete fixture. See here for 3" New Construction Rough-In downlights.
Aperture Size
3" Trim Module
Trim Cone
Black round trim cone, die-cast aluminum
Trim
Trimmed
Lens
Low-glare Solite glass eliminates "hot spots", and helps provide smooth, uniform light
