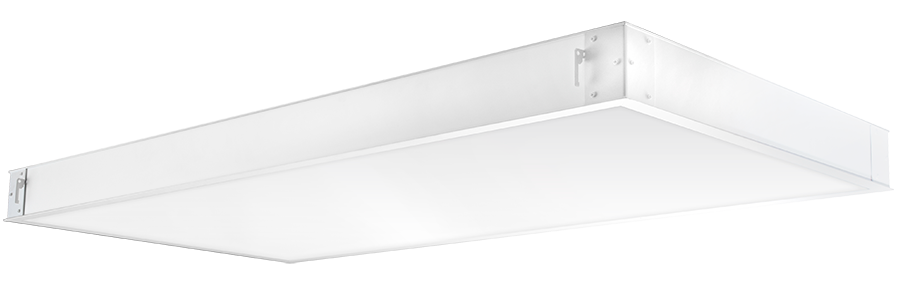

PANEL2X4-44N/D10
PANEL2X4-44N/D10
- Up to 60% savings on energy costs
- High-reflectance (91%) powder coat applied post fabrication for a more durable finish
- Ultra-smooth diffusion lens creates uniform light, edge to edge, for evenly lit spaces
- 100,000-hour LED Lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 44W |
| Color Temp | 4000K (Neutral) |
| Lumens | 6,120 lm |
| Efficacy | 137.8 lm/W |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.37A |
| 208V | 0.25A |
| 240V | 0.22A |
| 277V | 0.19A |
| Input Watts | 44.4W |
Dimensions
Weight: 34.0 lbs
Technical Specifications
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.3% at 120V, 13.8% at 277V
Power Factor
99.5% at 120V, 89.5% at 277V
Compliance
UL Listed
Suitable for damp locations. Recommended for indoor use only.
IC Rated
Suitable for insulated ceilings
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Lens
High-transmission acrylic lens with excellent distribution and uniformity
