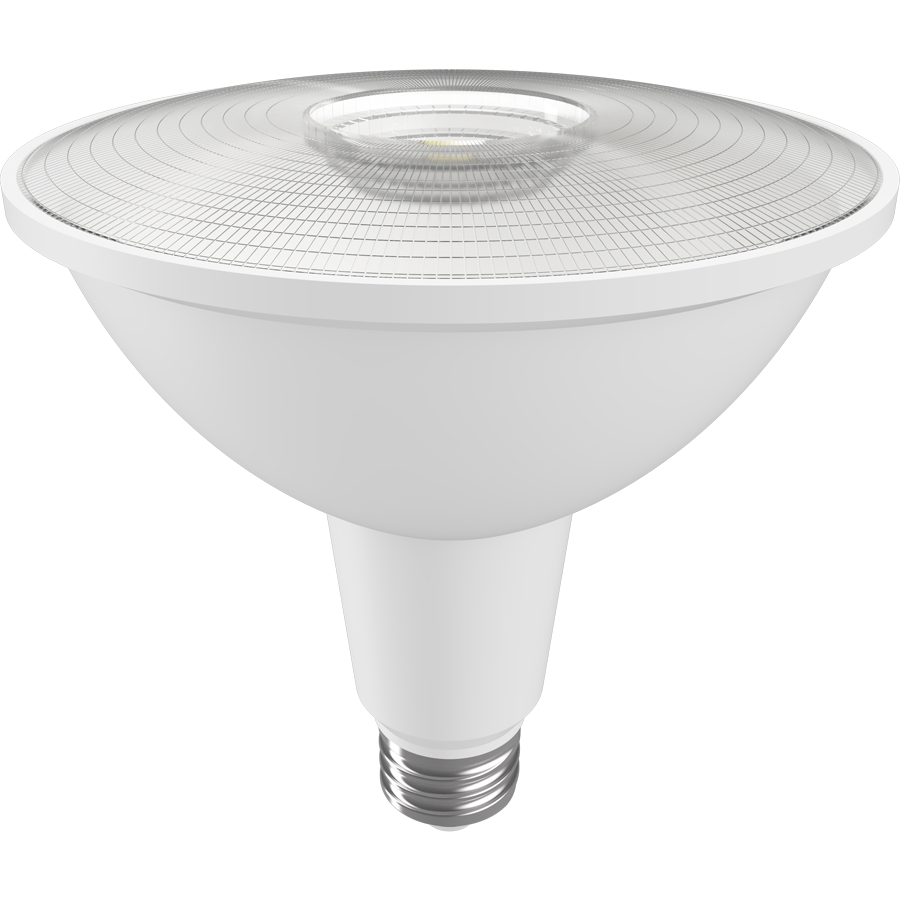

PAR38-12.5-840-40D-DIM

Spec Sheet Family Spec Sheet Spec Sheet

Energy efficient replacement for incandescent and halogen PAR lamps

Constructed from durable materials which lowers risk of breakage

Rated for use in enclosed and open fixtures in wet locations

Single optic and full face lens for precise beam angle control

View Technical Specs

View Price & Availability

Performance

Watts	13W
Color Temp	4000K
Lumens	1,100 lm
Efficacy	85
Color Accuracy	80 CRI
L70 Lifespan

Type
120V
208V
240V
277V
Input Watts	13W

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

PAR, 80 CRI Dimmable

Description

Replacements for halogen PAR lamps. Dimmable LED with 80 CRI and wet rated, great for use outdoors.

Wattage Equivalency

100W Incandescent

Input Wattage

13W

Lumens (Nominal)

1,100lm

Efficacy

85lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120V 50/60 Hz; 120V: 130mA

THD

<50%

Power Factor

0.7

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Flicker

<85%

Construction

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Shape

PAR38

Finish

White

Endcap Material

Nickel-plated aluminum

Enclosure Material

Constructed from frosted, shatter-resistant polycarbonate

Lens Finish

Frosted

LED Characteristics

Beam Angle

40°

Color Temperature

4000K

Color Accuracy (CRI)

≥80 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

E26 Edison

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

DLC Listed

Certification Model Number

P30021(PAR38-12.5-840-40D-DIM)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Not Lawful for Sales in California

NEC Compliant

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
