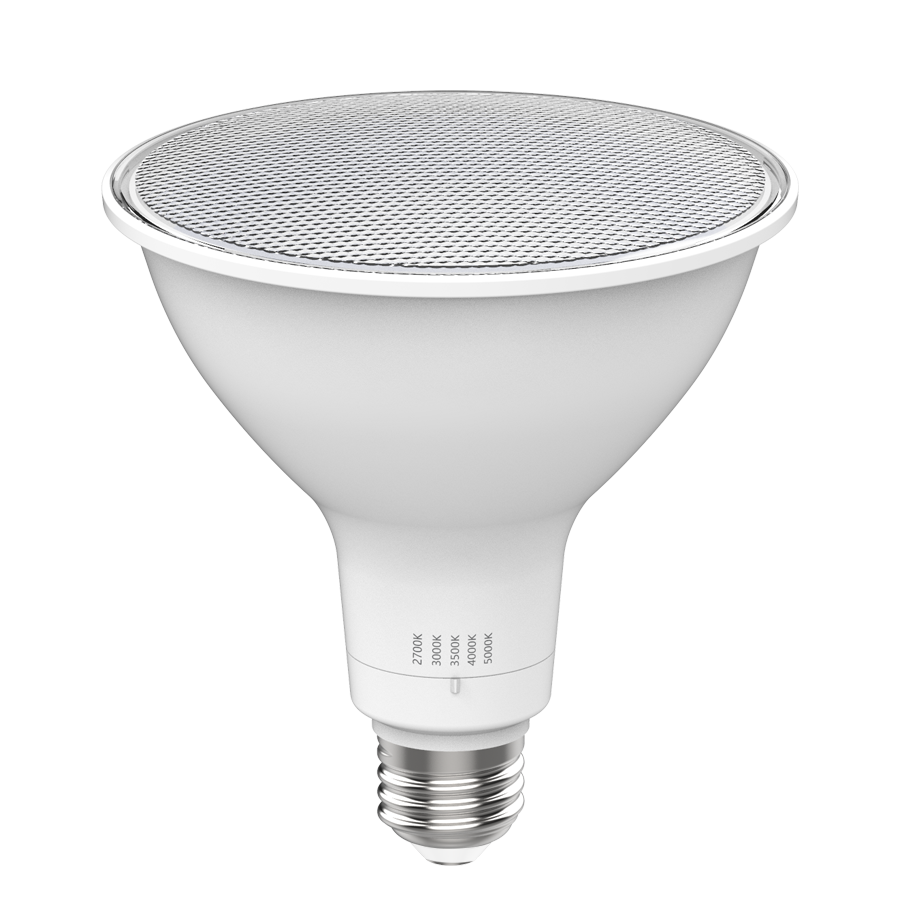

PAR38FA-15.5-9CCT-40D-DIM

Spec Sheet Family Spec Sheet Spec Sheet

Adjustable CCT to choose from 2700/3000/3500/4000/5000K

Replacement for incandescent/halogen PAR Lamps

Rated for use in enclosed fixtures in dry, damp, or wet locations

90+CRI provides high quality color rendering. Title 20 and Title 24 Compliant

Dimmable down to 10% on compatible TRIAC/ELV dimming systems.

View Technical Specs

View Price & Availability

Performance

Watts	15W
Color Temp
Lumens	1,400 lm
Efficacy	90
Color Accuracy	2700/3000/3500/4000/5000K CRI
L70 Lifespan

Type
120V
208V
240V
277V
Input Watts	15.5W

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

PAR

Description

Replacements for halogen PAR lamps. Dimmable CCT-adjustable lamps that are wet rated and great for use outdoors.

Wattage Equivalency

100W

Input Wattage

15.5W

Lumens

1,400lm

Efficacy

90lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results (lamps only)

Electrical

Power Factor

0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

143mA

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

LED Characteristics

Beam Angle

40°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 no greater than 0

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

E26 Edison

Construction

Shape

PAR38

Finish

White

Endcap Material

Aluminum

Enclosure Material

Plastic+Aluminum

Lens Finish

Frosted

Lens Construction

Single optic and full face lens for precise beam angle control

Compliance

Listings

UL1993

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Fixture Rating

Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.

Certification Model Number

PAR38FA-15.5-9CCT-40D-DIM

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
