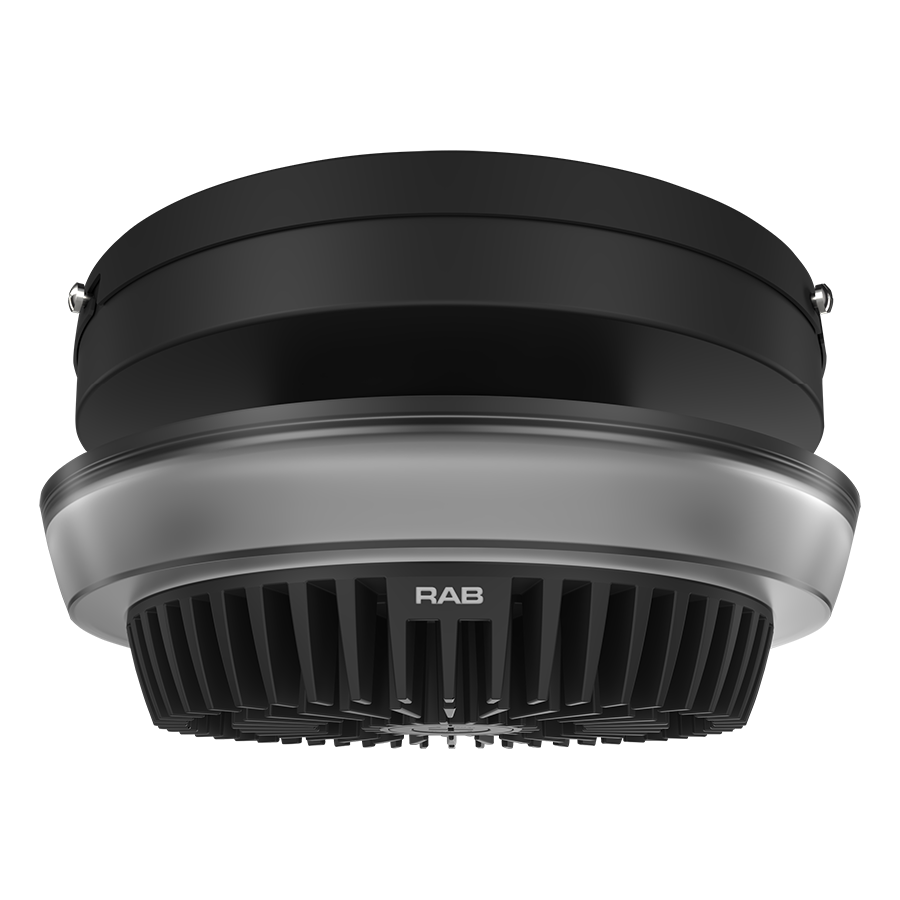

PARK34-70/E
70W 3000/4000/5000K
- 0-10V Dimming, standard
- 100,000-hour LED lifespan
- IP65 rating protects against dust and water
- 5-Year, limited warranty
Performance
| Watts | 70/60/50W |
| Color Temp | 3000/4000/5000K |
| Lumens | 6,783-9,088 lm |
| Efficacy | 121-151.1 lm/W |
| Color Accuracy | 80-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.58A/0.50A/0.41A |
| 208V | |
| 240V | |
| 277V | 0.25A/0.23A/0.19 |
| Input Watts | 48.8-68.7W |

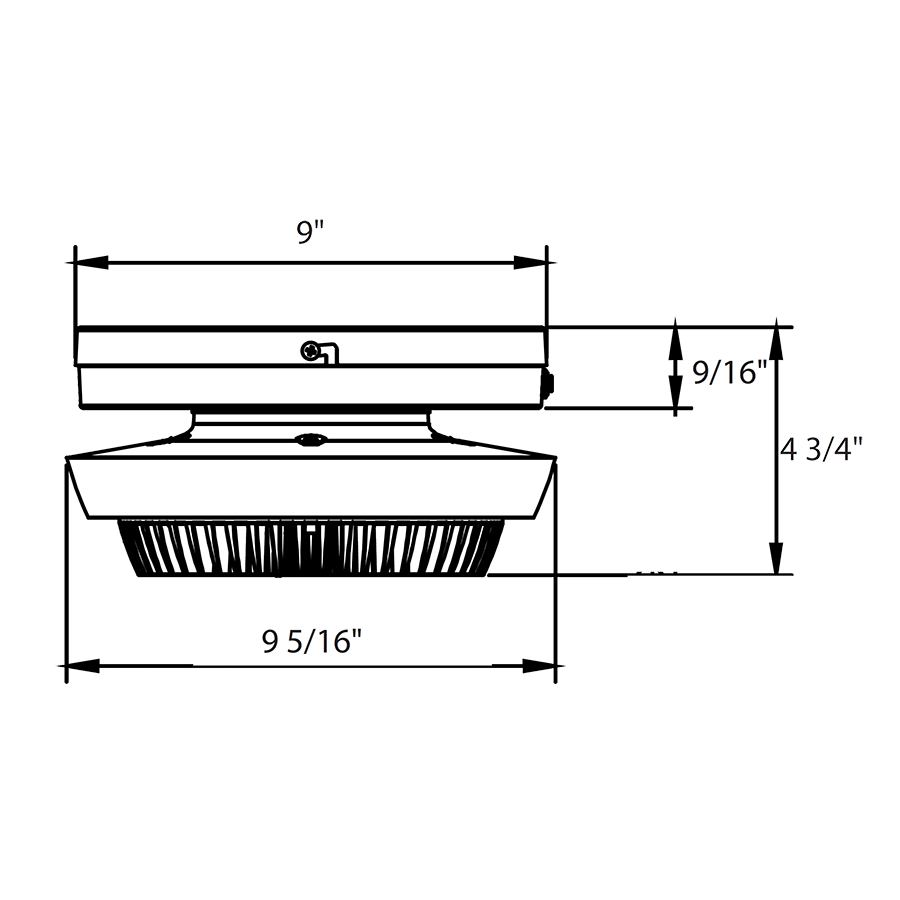

Dimensions
Weight: 5.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
70W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.58A or 277V: 0.25A
60W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.50A or 277V: 0.23A
50W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.41A or 277V: 0.19A
60W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.50A or 277V: 0.23A
50W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.41A or 277V: 0.19A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor
99.5% at 120V, 96.3% at 277V
Voltage
120 or 277V
Dim to Off
Yes
Surge Protection
4 kV
Aux Power Supply
Yes
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120V or 277V.
Battery Backup Light Loss Factor
70W: 5.7%
60W: 6.7%
50W: 8%
60W: 6.7%
50W: 8%
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
70W: Replaces up to 250W Metal Halide (MH)
60W: Replaces up to 250W Metal Halide (MH)
50W: Replaces up to 200W Metal Halide (MH)
60W: Replaces up to 250W Metal Halide (MH)
50W: Replaces up to 200W Metal Halide (MH)
Construction
Cold Weather Starting
The minimum starting temperature is 0°C/32°F Ambient Temperature
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Die-cast aluminum
Lens
Polycarbonate lens
Reflector
Polycarbonate
Gaskets
Silcone rubber
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting

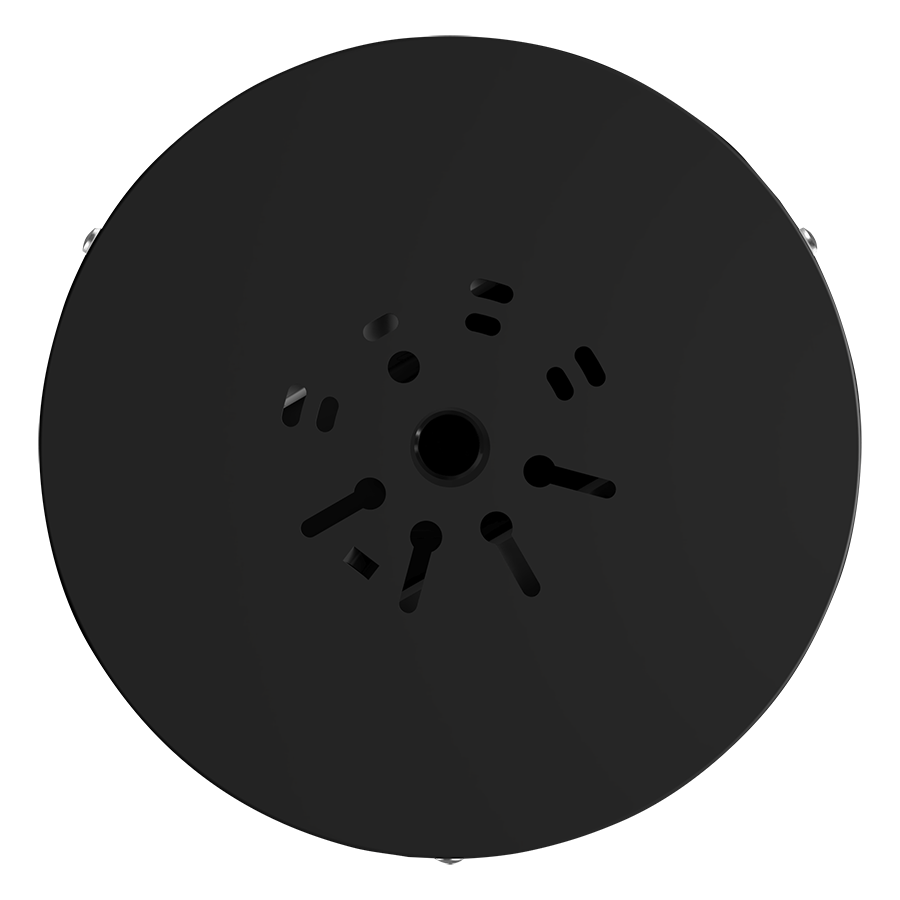

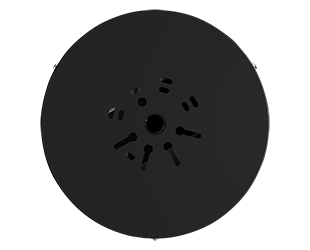

PARK34 accommodates surface mounting and its unique, removable adapter allows for both 1/2" and 3/4" NPT pendant mounting (by others).
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
